ГБПОУ МО «Колледж «Подмосковье» Методическая разработка учебного занятия по английскому языку для специальности 15.01.39 « Оператор станков с программным управлением » Тема « Станки. Machine - tools » Преподаватель: Гончарова К.Э. Химки 2024
Guess the word? It is a mechanical or electrical device designed to perform specific tasks or functions to simplify or automate human activities. A machine tool
Aim - learn different types of machine tools Tasks - compare machine and hand tools - learn machine-tools functions - importance of machine work
Under the conditions of sanctions, our country Russia - doubled the production of machine tools in domestic factories - replaces Western machines with Chinese ones - exports modern tools Lead-in - is developing technological cooperation with friendly countries in the field of machine tool production. The exchange of technological experience is very important for us. Therefore, as future operators, you need to have basic knowledge in English in order to share your experience with foreign colleagues.

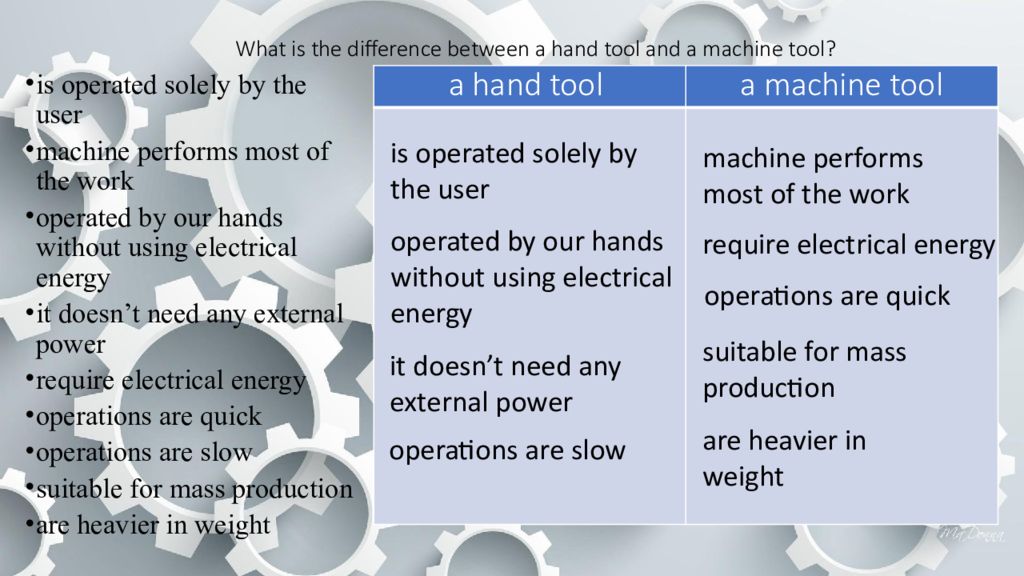

is operated solely by the user machine performs most of the work operated by our hands without using electrical energy it doesn’t need any external power require electrical energy operations are quick operations are slow suitable for mass production are heavier in weight a hand tool a machine tool is operated solely by the user machine performs most of the work operated by our hands without using electrical energy it doesn’t need any external power require electrical energy operations are quick operations are slow suitable for mass production are heavier in weight

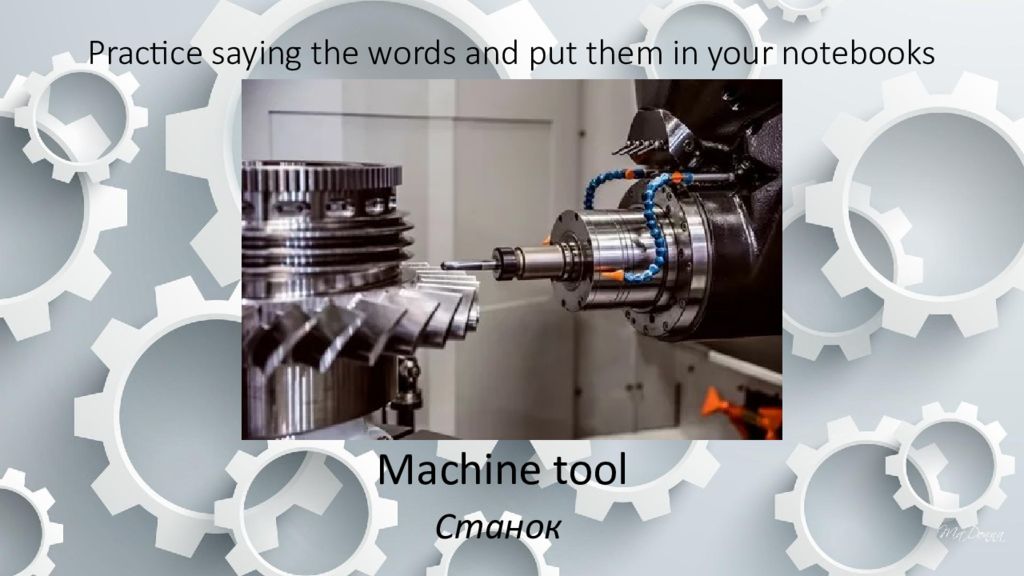

Machine tool Станок

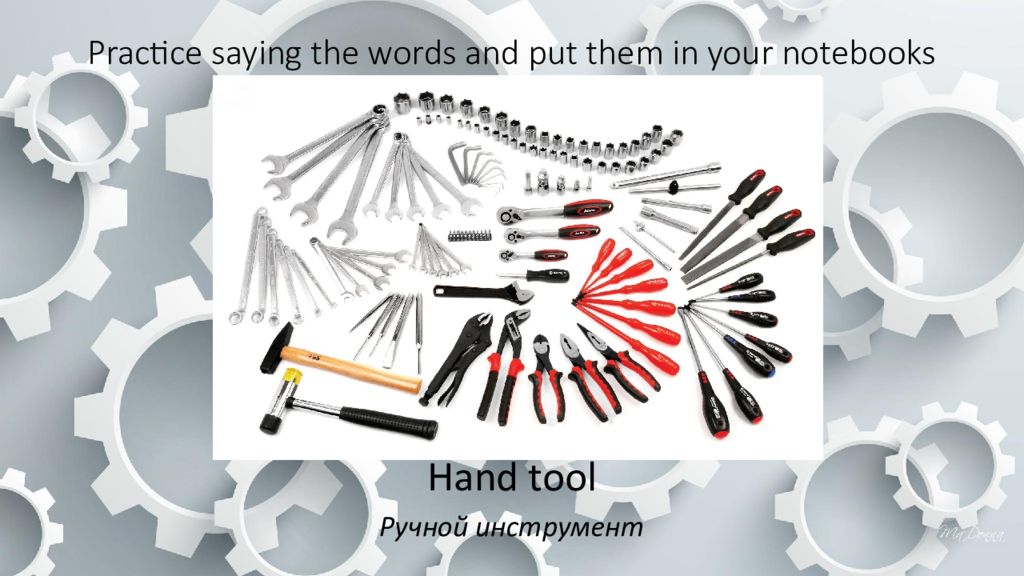

Hand tool Ручной инструмент Practice saying the words and put them in your notebooks

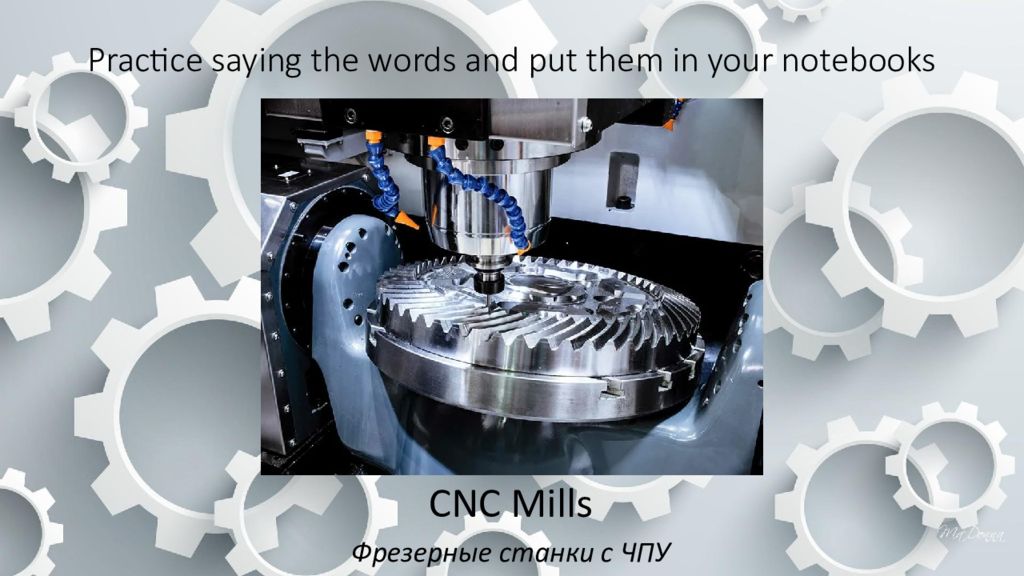

CNC Mills Фрезерные станки с ЧПУ Practice saying the words and put them in your notebooks

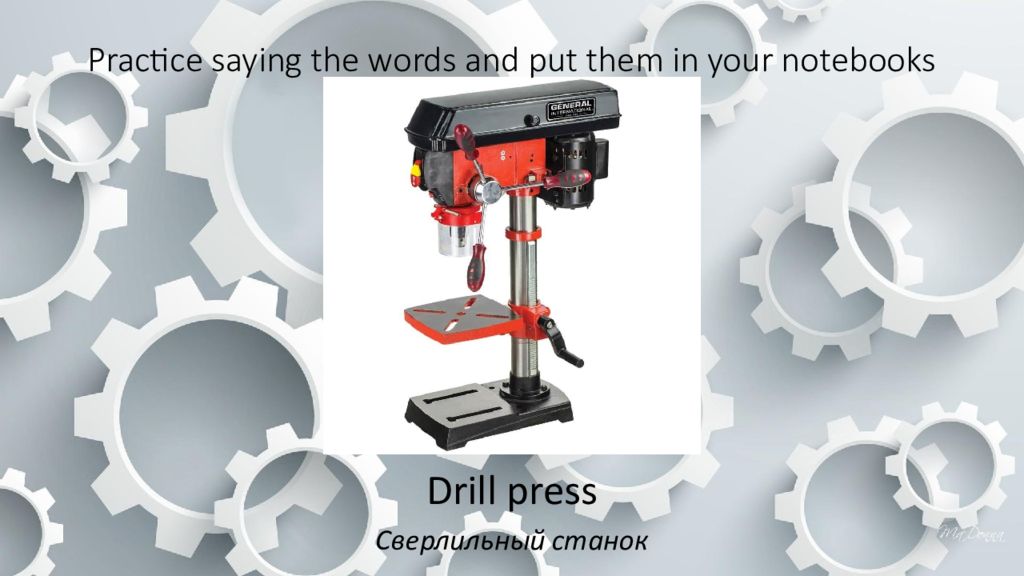

Drill press Сверлильный станок Practice saying the words and put them in your notebooks

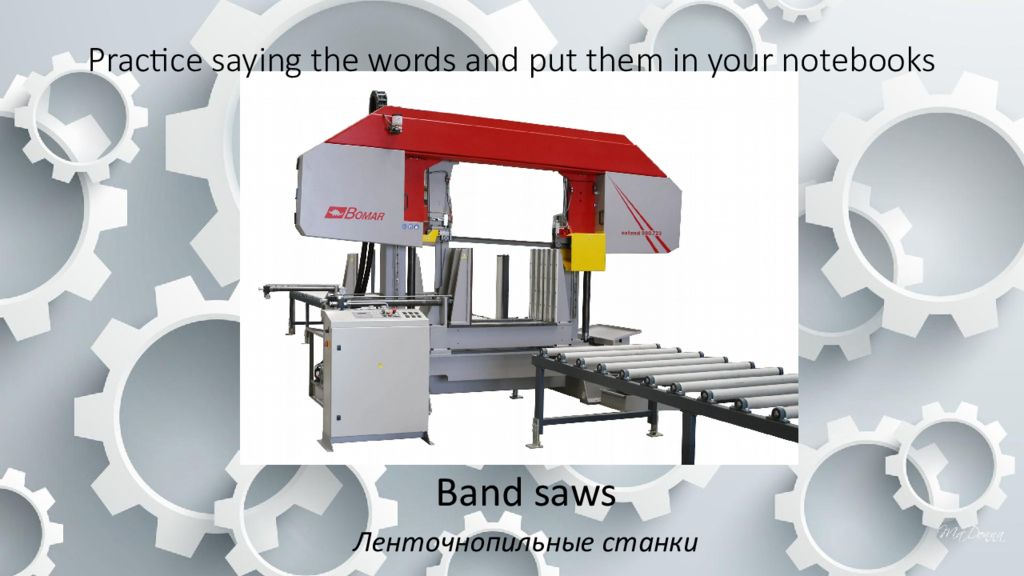

Band saws Ленточнопильные станки Practice saying the words and put them in your notebooks

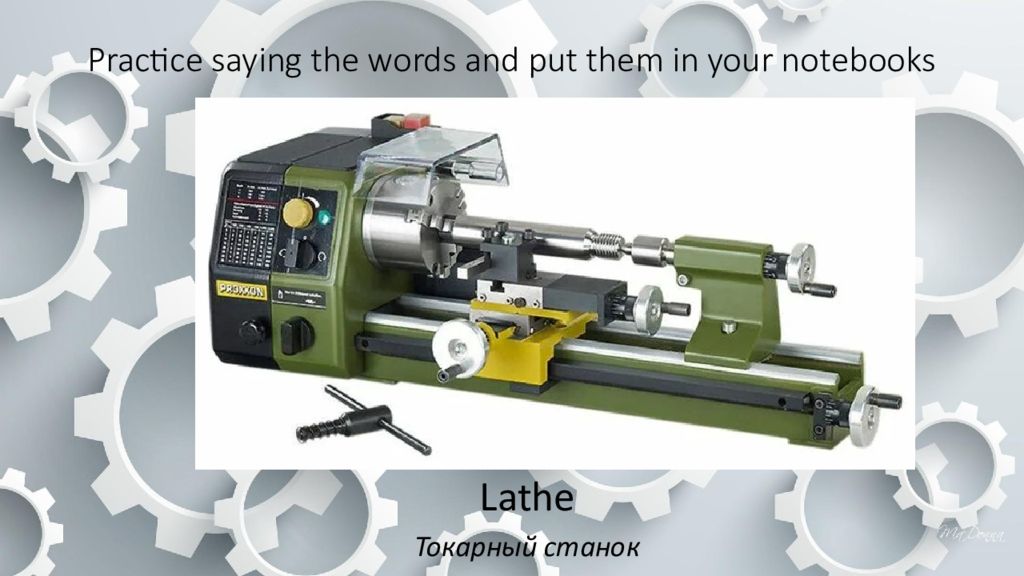

Lathe Токарный станок Practice saying the words and put them in your notebooks

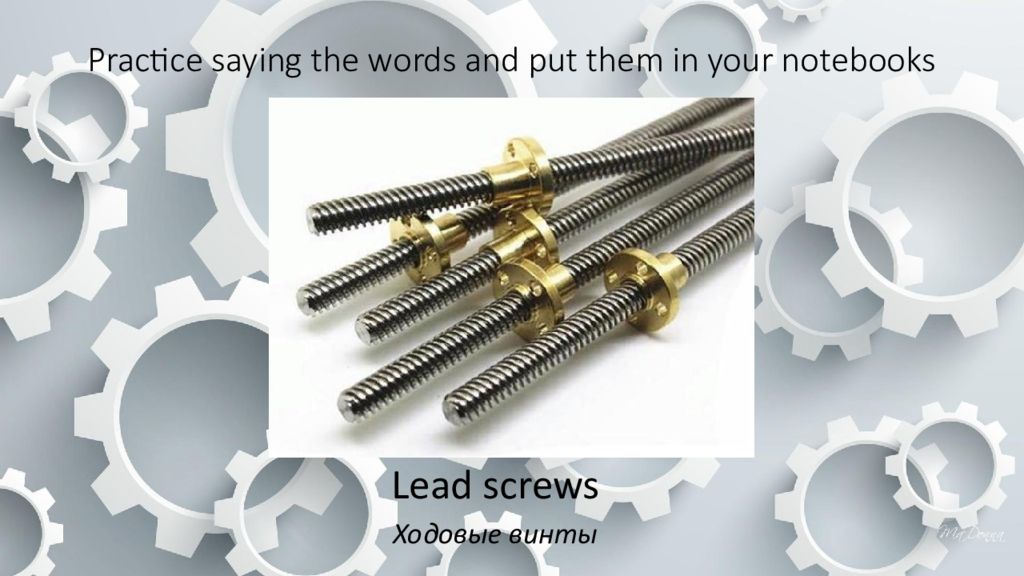

Lead screws Ходовые винты Practice saying the words and put them in your notebooks

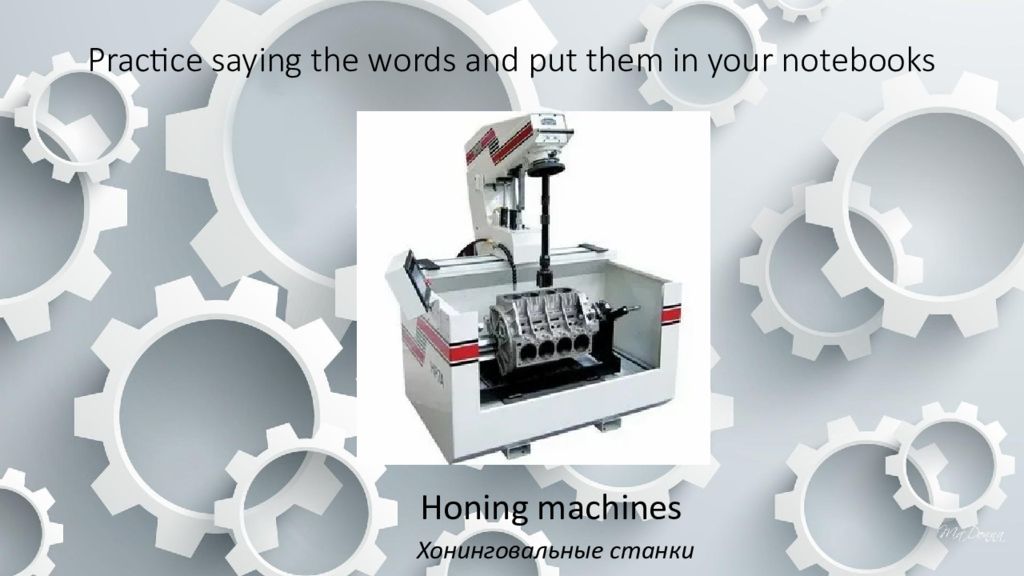

Honing machines Хонинговальные станки Practice saying the words and put them in your notebooks

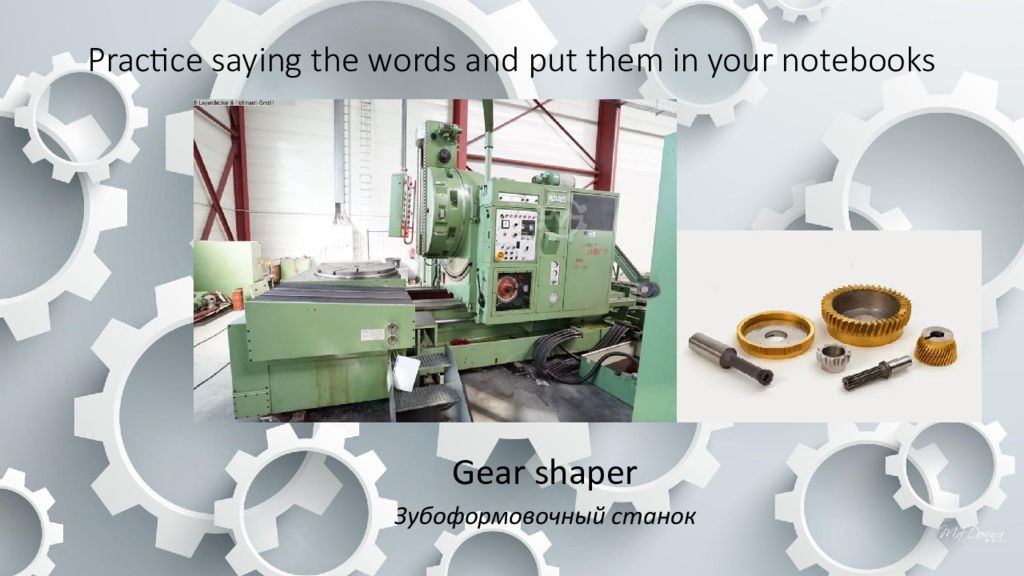

Gear shaper Зубоформовочный станок Practice saying the words and put them in your notebooks

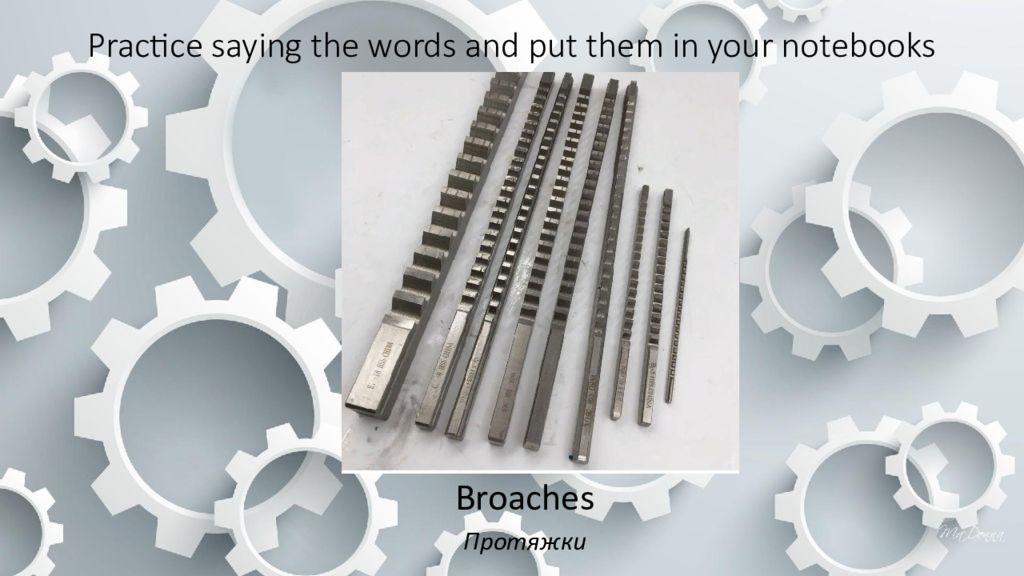

Broaches Протяжки Practice saying the words and put them in your notebooks

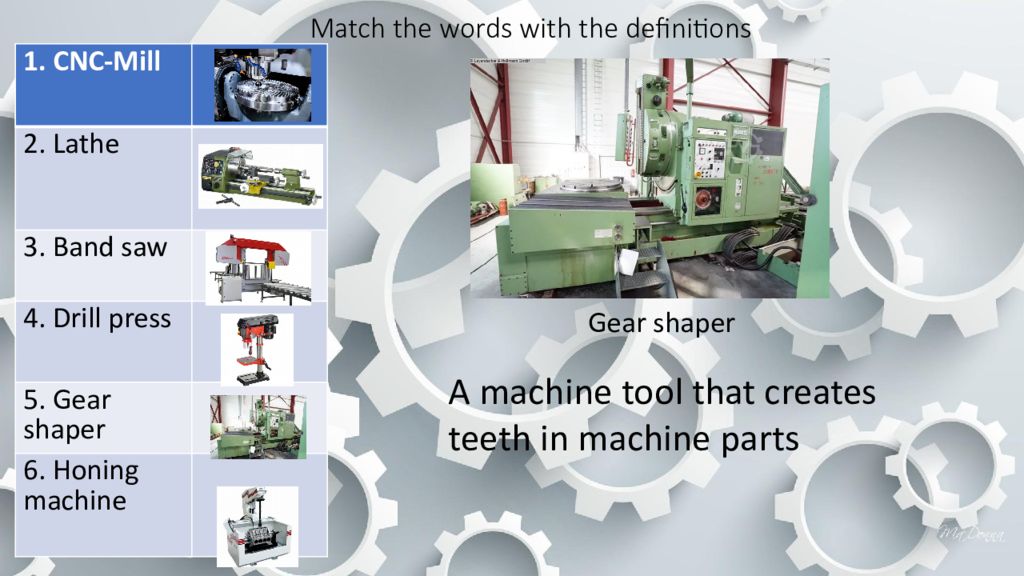

1. CNC-Mill 2. Lathe 3. Band saw 4. Drill press 5. Gear shaper 6. Honing machine A machine tool that creates teeth in machine parts Gear shaper

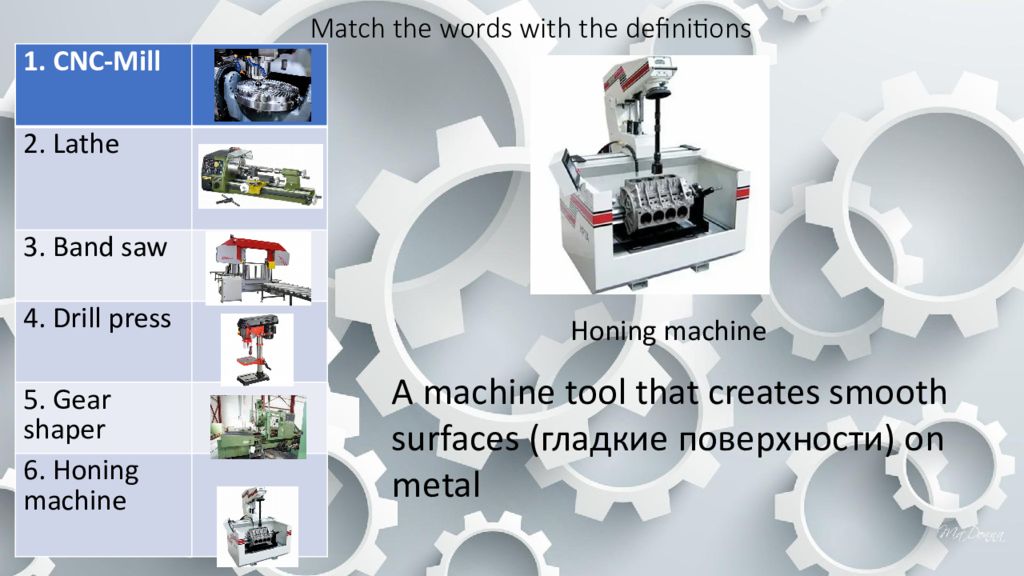

1. CNC-Mill 2. Lathe 3. Band saw 4. Drill press 5. Gear shaper 6. Honing machine A machine tool that creates smooth surfaces (гладкие поверхности) on metal Honing machine

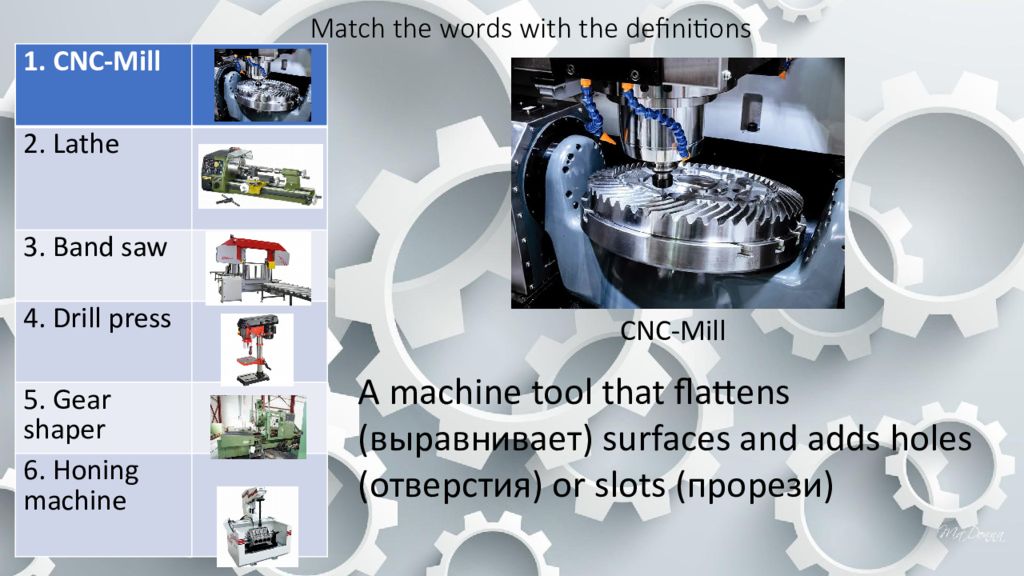

1. CNC-Mill 2. Lathe 3. Band saw 4. Drill press 5. Gear shaper 6. Honing machine A machine tool that flattens (выравнивает) surfaces and adds holes (отверстия) or slots ( прорези) CNC-Mill

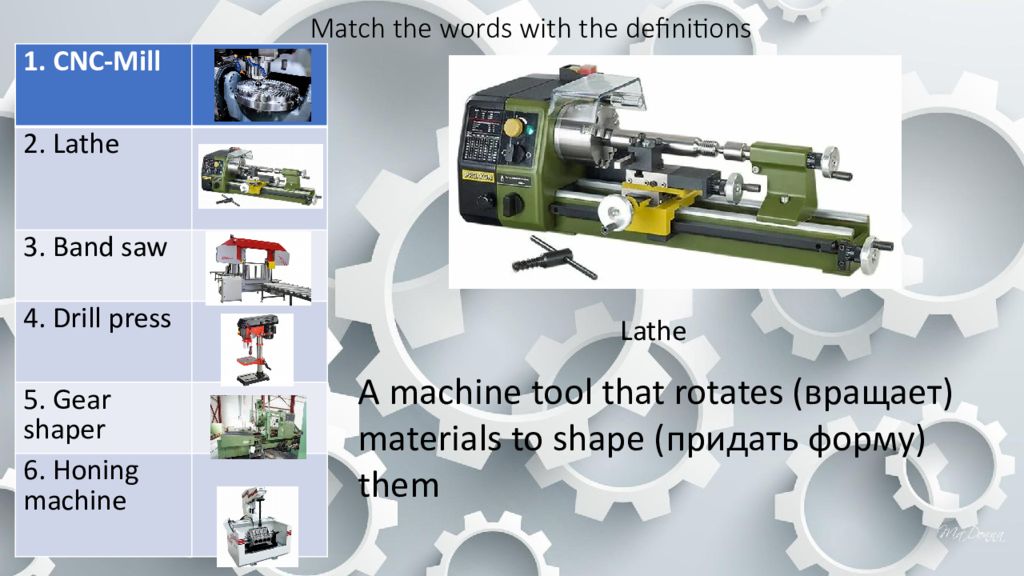

1. CNC-Mill 2. Lathe 3. Band saw 4. Drill press 5. Gear shaper 6. Honing machine A machine tool that rotates (вращает) materials to shape (придать форму) them Lathe

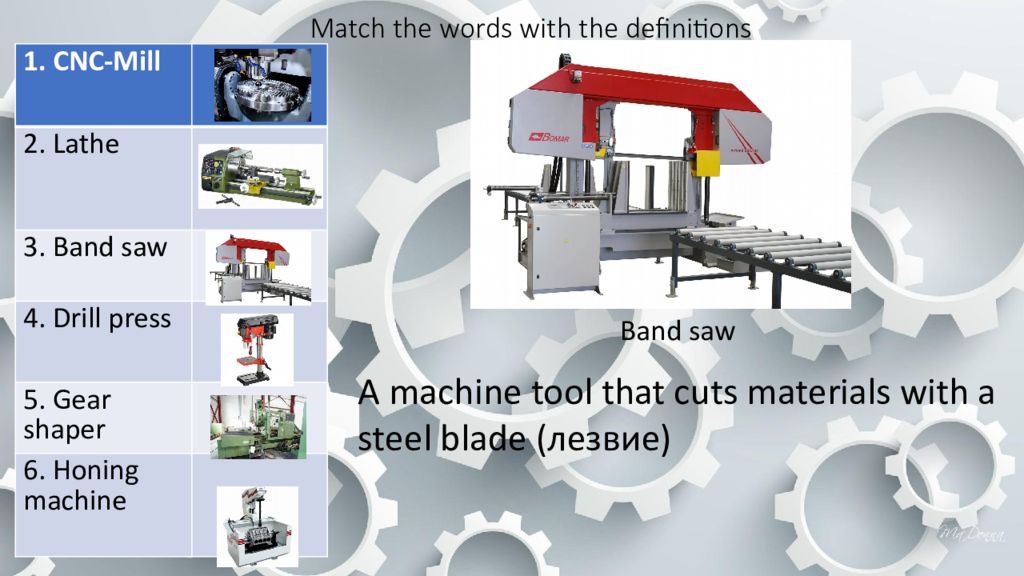

1. CNC-Mill 2. Lathe 3. Band saw 4. Drill press 5. Gear shaper 6. Honing machine A machine tool that cuts materials with a steel blade ( лезвие) Band saw

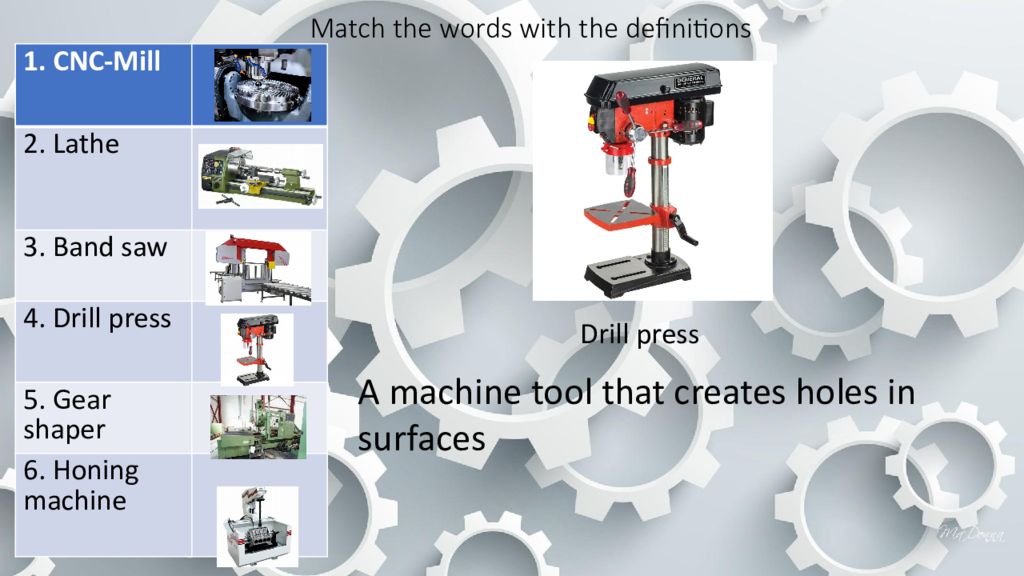

1. CNC-Mill 2. Lathe 3. Band saw 4. Drill press 5. Gear shaper 6. Honing machine A machine tool that creates holes in surfaces Drill press
1. Gear shaper A machine tool that creates teeth in machine parts https://yandex.ru/video/preview/17303595712602681745 2. Honing machine b. A machine tool that creates smooth surfaces (гладкие поверхности) on metal https://yandex.ru/video/preview/9940951762213142256 3. CNC-Mill с. A machine tool that flattens (выравнивает) surfaces and adds holes (отверстия) or slots ( прорези) https://yandex.ru/video/preview/5561346833655042680 4. Lathe d. A machine tool that rotates (вращает) materials to shape (придать форму) them 5. Band saw e. A machine tool that cuts materials with a steel blade ( лезвие) 6. Drill press f. A machine tool that creates holes in surfaces

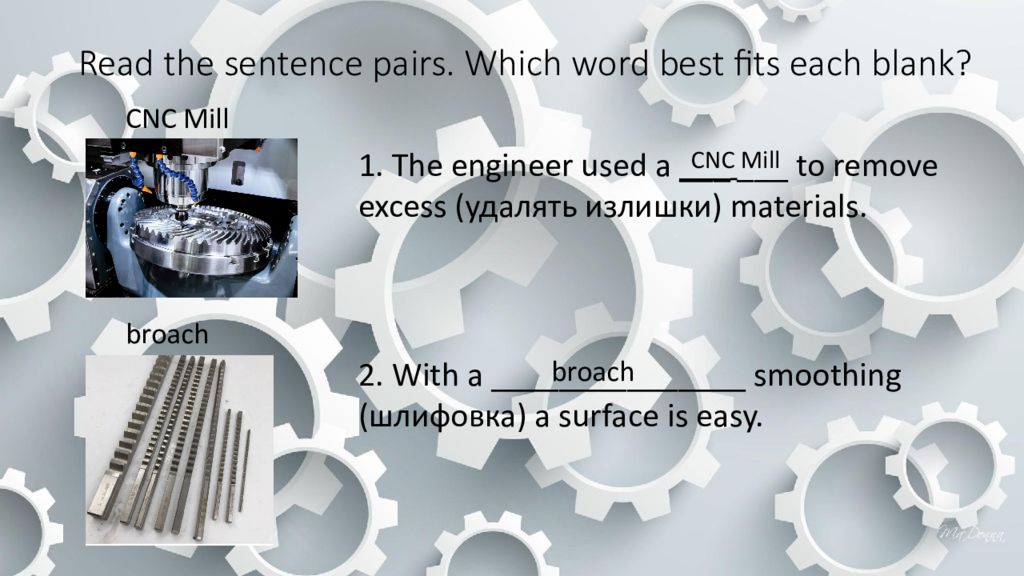

CNC Mill broach 1. The engineer used a ___ ___ to remove excess (удалять излишки) materials. 2. With a _______________ smoothing (шлифовка) a surface is easy. CNC Mill broach

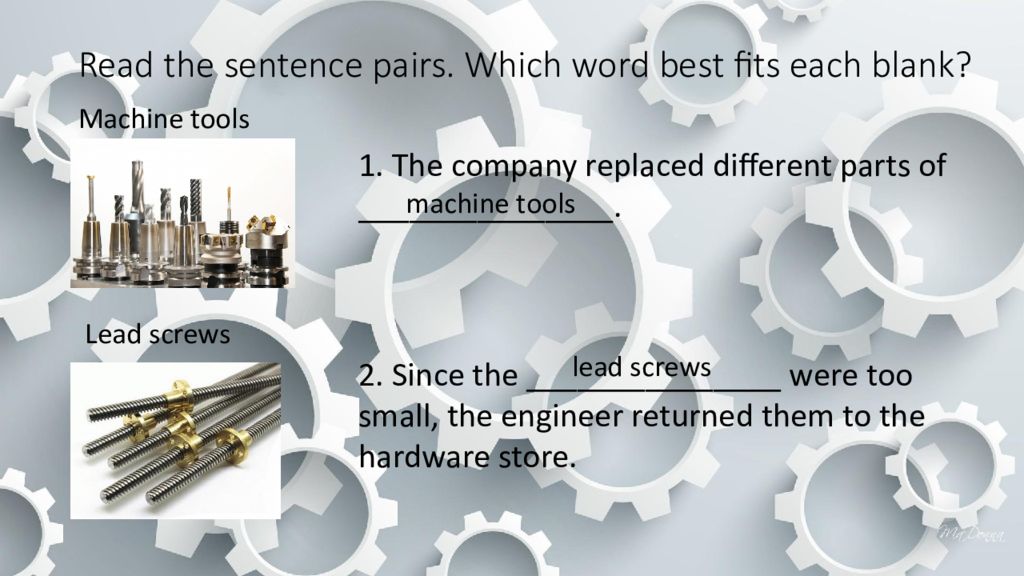

Machine tools Lead screws 1. The company replaced different parts of _______________. 2. Since the _______________ were too small, the engineer returned them to the hardware store. machine tools lead screws

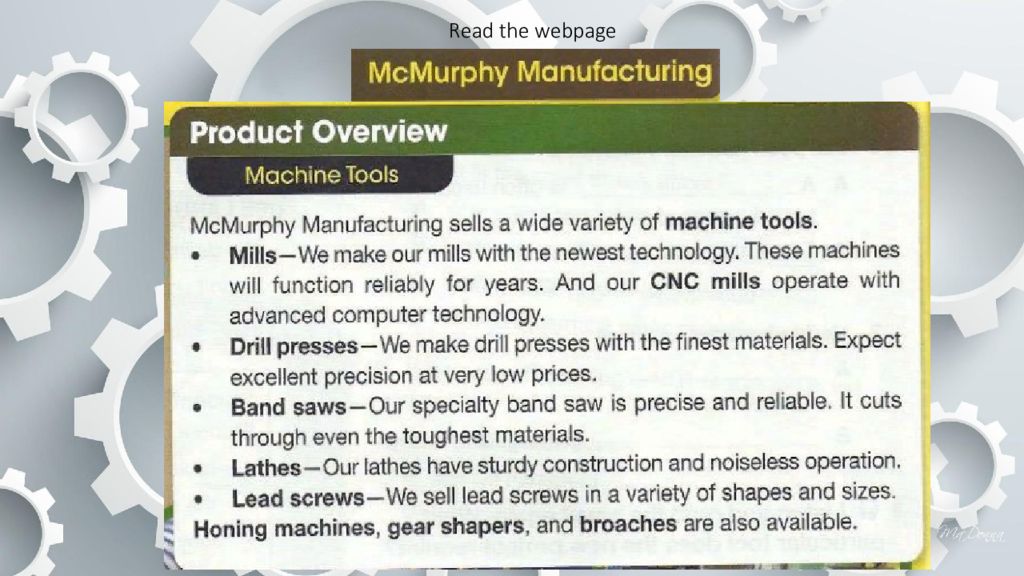

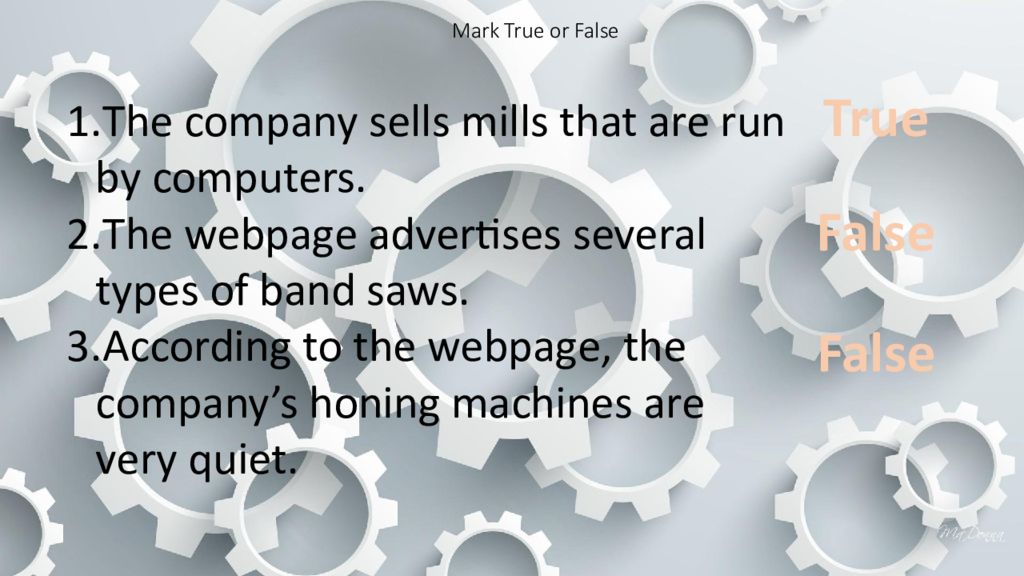

The company sells mills that are run by computers. The webpage advertises several types of band saws. According to the webpage, the company’s honing machines are very quiet. True False False

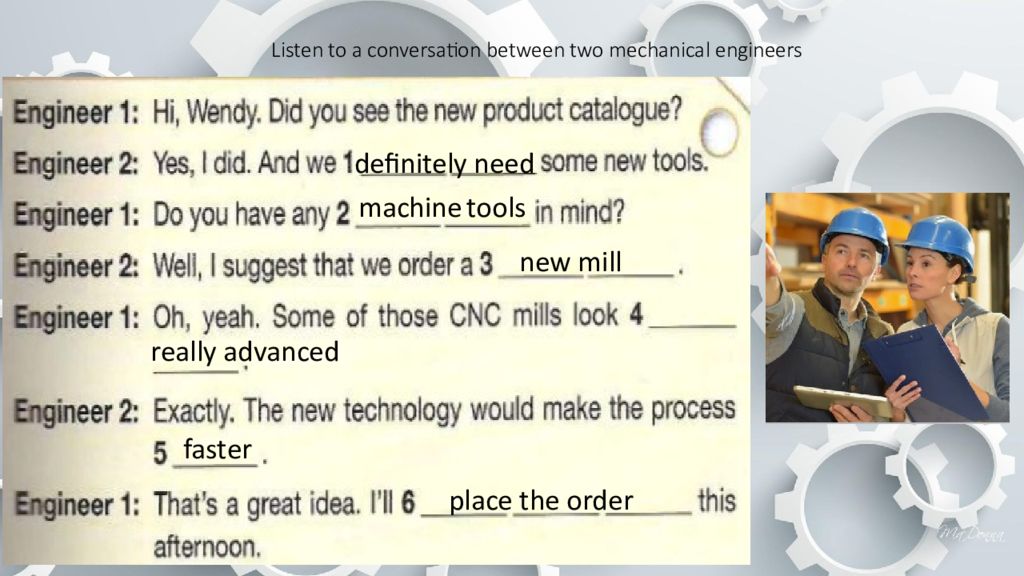

definitely need machine tools new mill really advanced faster place the order

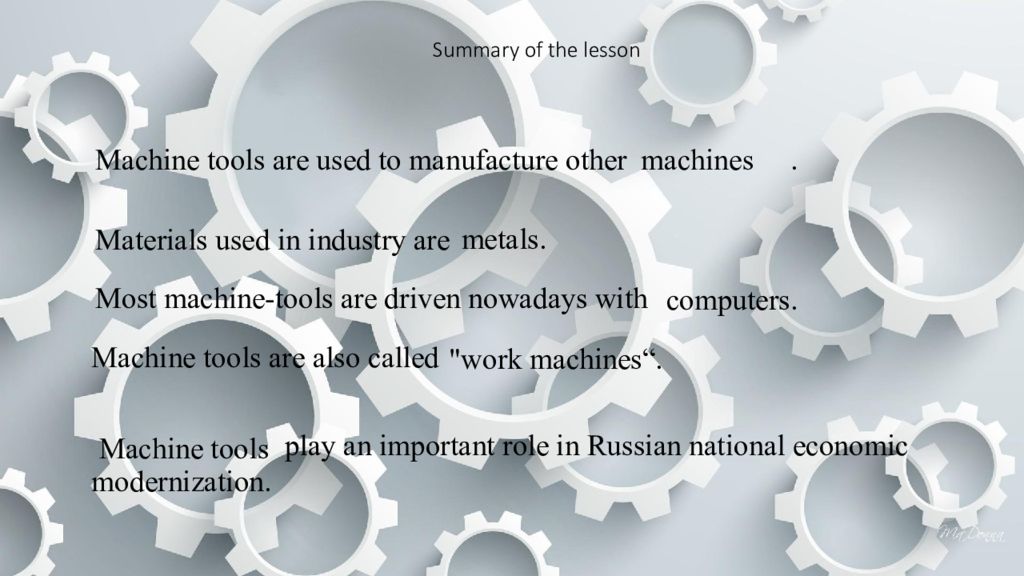

play an important role in Russian national economic modernization. Machine tools are used to manufacture other. Machine tools are also called M ost machine-tools are driven nowadays with Materials used in industry are machines metals. computers. "work machines“. Machine tools

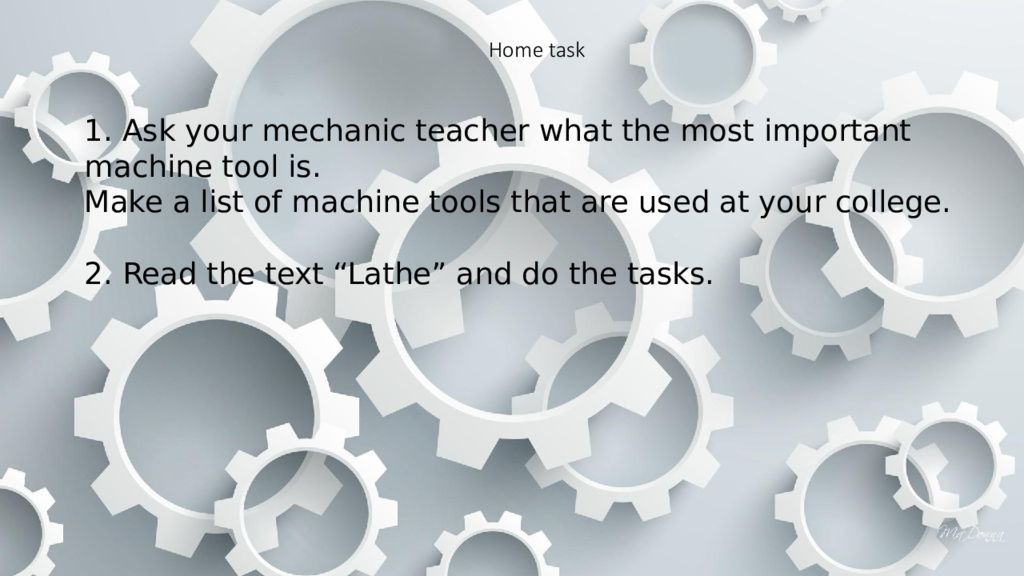

1. Ask your mechanic teacher what the most important machine tool is. Make a list of machine tools that are used at your college. 2. Read the text “Lathe” and do the tasks.

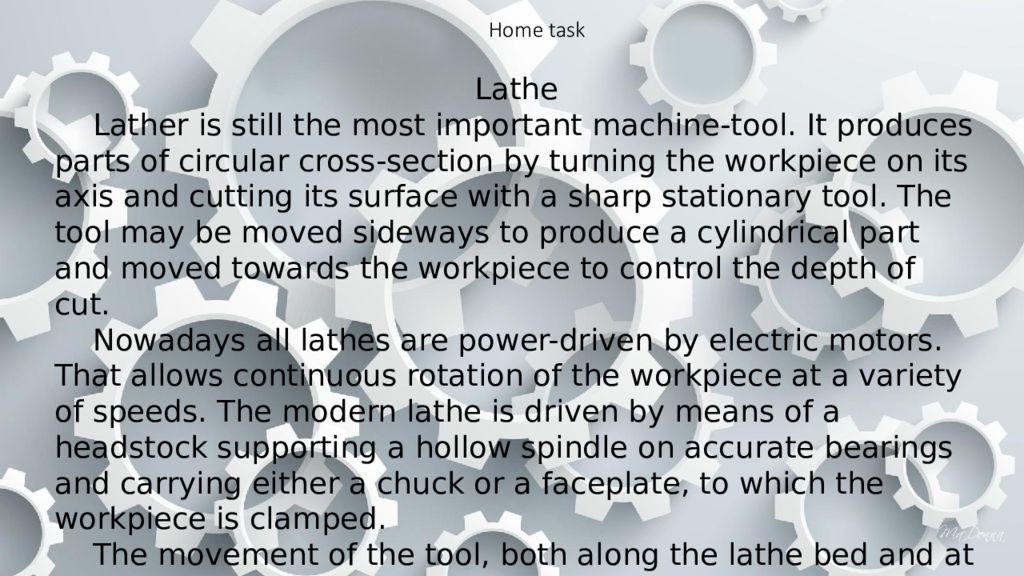

Lathe Lather is still the most important machine-tool. It produces parts of circular cross-section by turning the workpiece on its axis and cutting its surface with a sharp stationary tool. The tool may be moved sideways to produce a cylindrical part and moved towards the workpiece to control the depth of cut. Nowadays all lathes are power-driven by electric motors. That allows continuous rotation of the workpiece at a variety of speeds. The modern lathe is driven by means of a headstock supporting a hollow spindle on accurate bearings and carrying either a chuck or a faceplate, to which the workpiece is clamped. The movement of the tool, both along the lathe bed and at right angle to it, can be accurately controlled, so enabling a part to be machined to close tolerances. Modern lathes are often under numerical control.

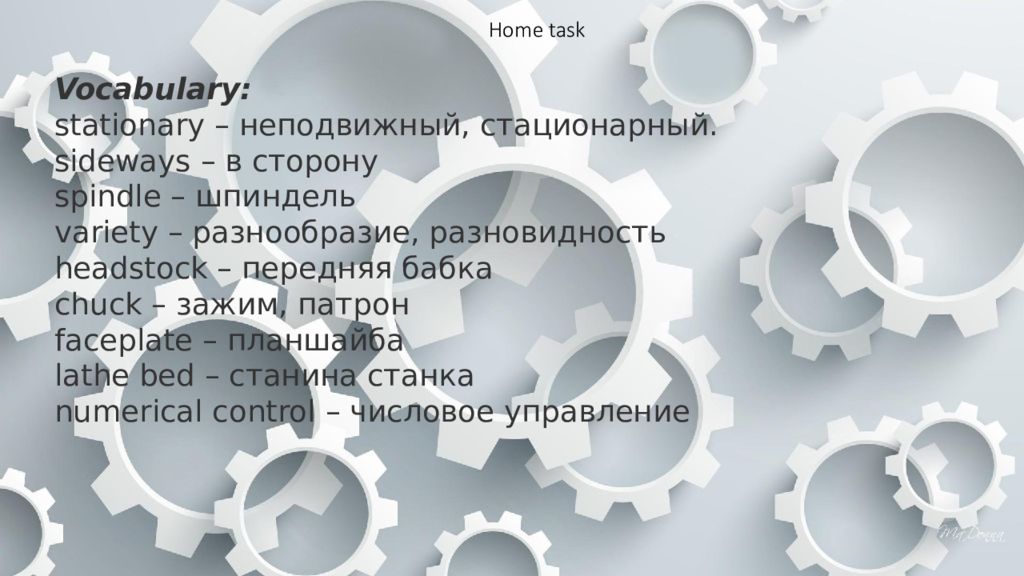

Vocabulary: stationary – неподвижный, стационарный. sideways – в сторону spindle – шпиндель variety – разнообразие, разновидность headstock – передняя бабка chuck – зажим, патрон faceplate – планшайба lathe bed – станина станка numerical control – числовое управление
Answer the questions: 1. What parts can be made with the lathes? 2. How can the cutting tool be moved on the lathe? 3. How is the workpiece clamped in the lathe? 4. Can we change the speeds of workpiece rotation in the lathe? Why? 5. By what means is the modern lathe driven?
