O1202 G17 G54 G40 G80 G49G90 (X0=#1=A20) (Y0=#2=B20) (U=#21=U30 SHAG OTV) (R=#18=R45 UGOL POV SYS) (H=#11=H5 KOL POVT OTV) (T=#20=T1 N INSTR) G65 P9911 A20 B20 R20. Z-30 U50 H5 T1 S4000 F180 M30 %

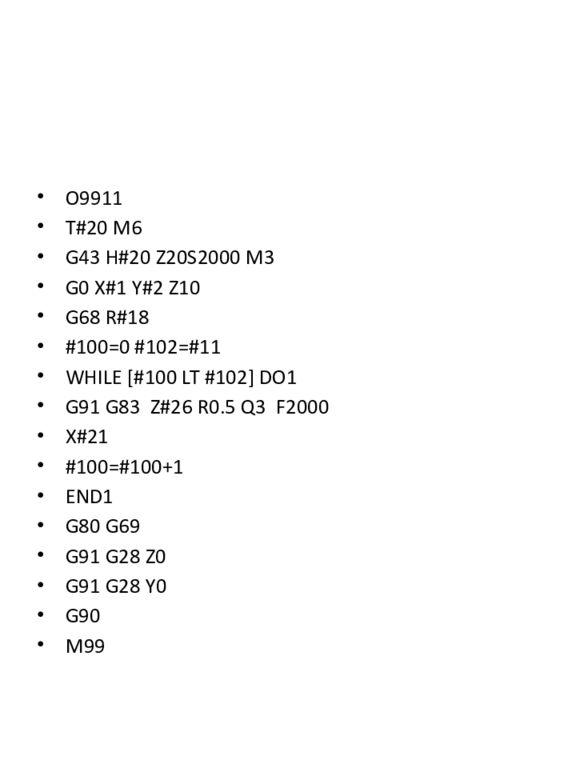

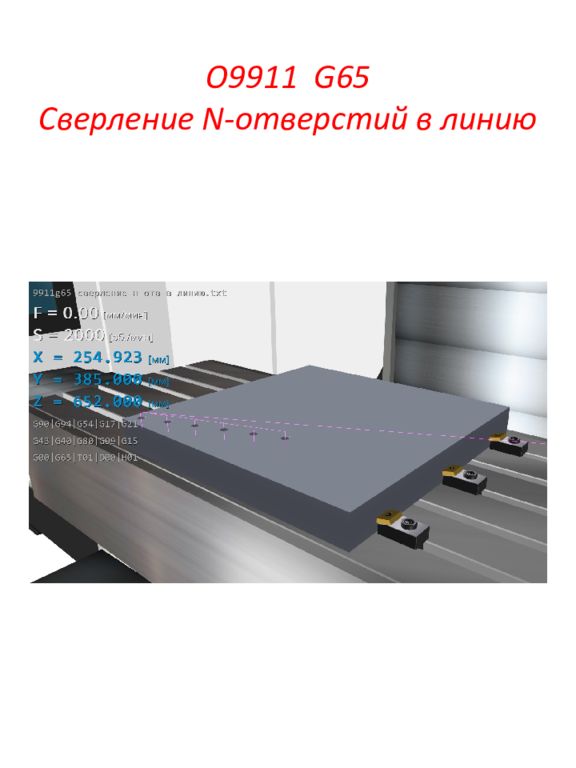

O9911 T#20 M6 G43 H#20 Z20S2000 M3 G0 X#1 Y#2 Z10 G68 R#18 #100=0 #102=#11 WHILE [#100 LT #102] DO1 G91 G83 Z#26 R0.5 Q3 F2000 X#21 #100=#100+1 END1 G80 G69 G91 G28 Z0 G91 G28 Y0 G90 М99

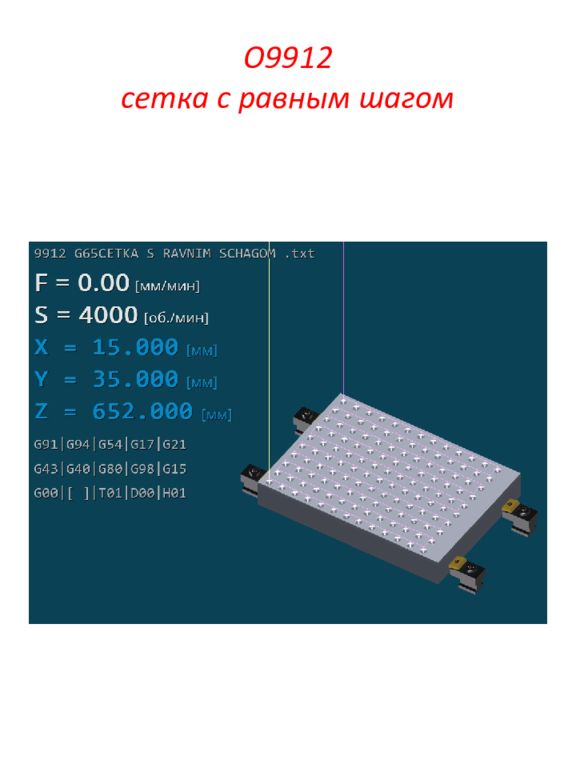

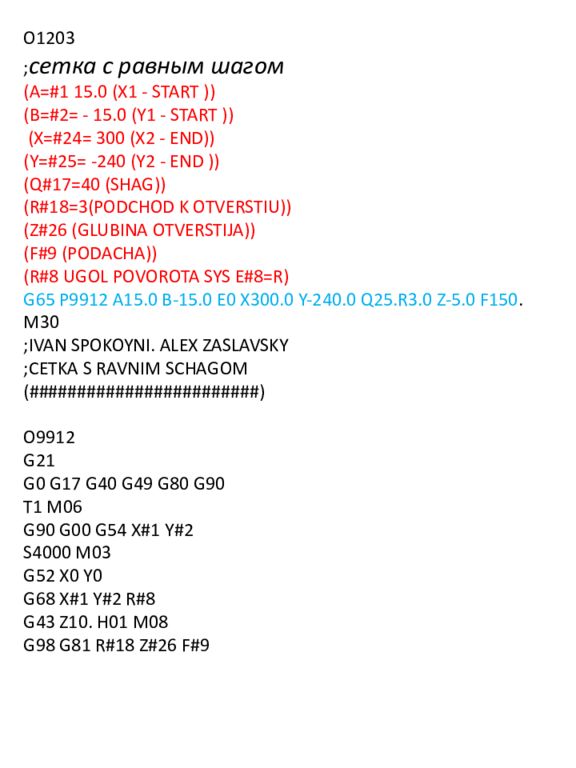

O1203 ; сетка с равным шагом (A=#1 15.0 (X1 - START )) (B=#2= - 15.0 (Y1 - START )) (X=#24= 300 (X2 - END)) (Y=#25= -240 (Y2 - END )) (Q#17=40 (SHAG)) (R#18=3(PODCHOD K OTVERSTIU)) (Z#26 (GLUBINA OTVERSTIJA)) (F#9 (PODACHA)) (R#8 UGOL POVOROTA SYS E#8=R) G65 P9912 A15.0 B-15.0 E0 X300.0 Y-240.0 Q25.R3.0 Z-5.0 F150. M30 ;IVAN SPOKOYNI. ALEX ZASLAVSKY ;CETKA S RAVNIM SCHAGOM (########################) O9912 G21 G0 G17 G40 G49 G80 G90 T1 M06 G90 G00 G54 X#1 Y#2 S4000 M03 G52 X0 Y0 G68 X#1 Y#2 R#8 G43 Z10. H01 M08 G98 G81 R#18 Z#26 F#9

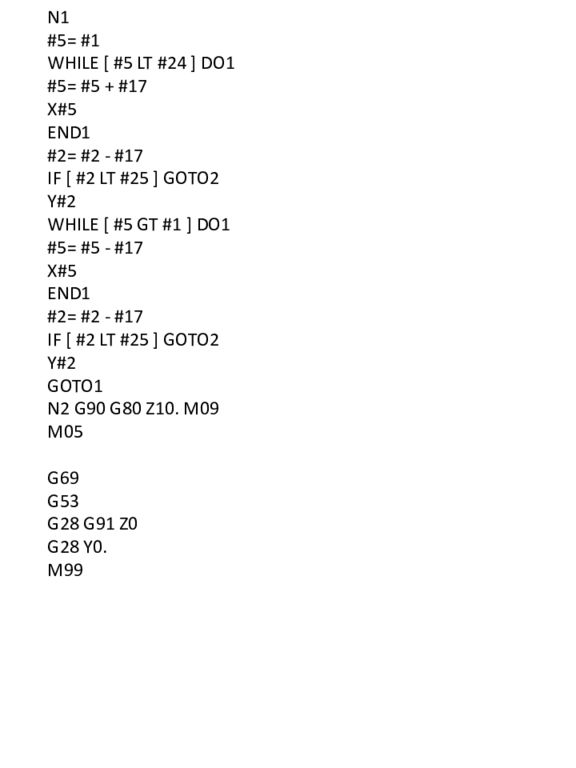

N1 #5= #1 WHILE [ #5 LT #24 ] DO1 #5= #5 + #17 X#5 END1 #2= #2 - #17 IF [ #2 LT #25 ] GOTO2 Y#2 WHILE [ #5 GT #1 ] DO1 #5= #5 - #17 X#5 END1 #2= #2 - #17 IF [ #2 LT #25 ] GOTO2 Y#2 GOTO1 N2 G90 G80 Z10. M09 M05 G69 G53 G28 G91 Z0 G28 Y0. M99

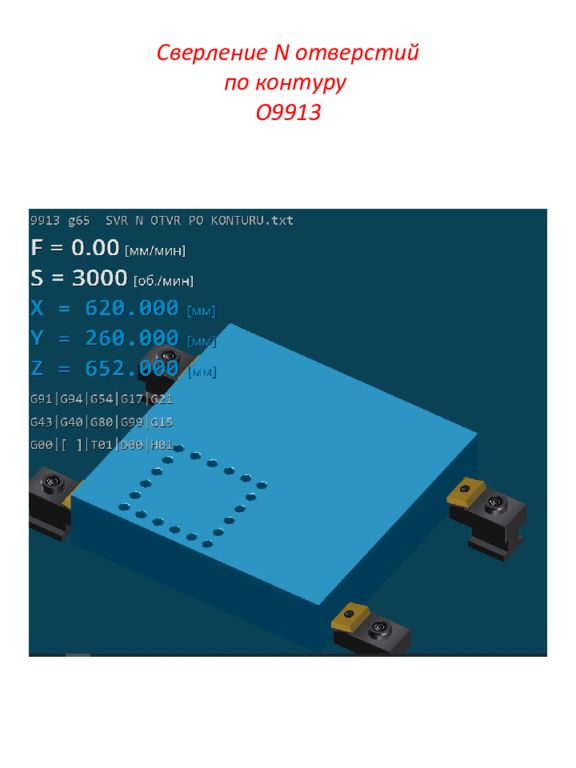

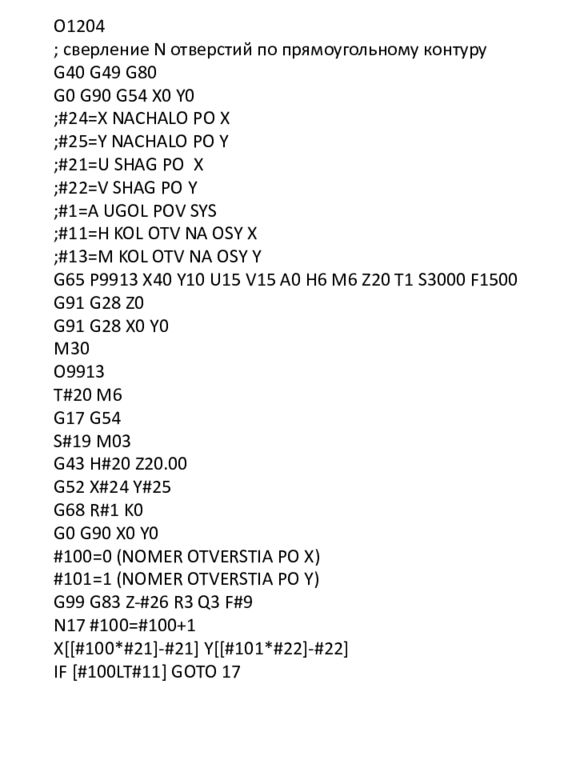

O1204 ; сверление N отверстий по прямоугольному контуру G40 G49 G80 G0 G90 G54 X0 Y0 ;#24=X NACHALO PO X ;#25=Y NACHALO PO Y ;#21=U SHAG PO X ;#22=V SHAG PO Y ;#1=A UGOL POV SYS ;#11=H KOL OTV NA OSY X ;#13=M KOL OTV NA OSY Y G65 P9913 X40 Y10 U15 V15 A0 H6 M6 Z20 T1 S3000 F1500 G91 G28 Z0 G91 G28 X0 Y0 M30 O9913 T#20 M6 G17 G54 S#19 M03 G43 H#20 Z20.00 G52 X#24 Y#25 G68 R#1 K0 G0 G90 X0 Y0 #100=0 (NOMER OTVERSTIA PO X) #101=1 (NOMER OTVERSTIA PO Y) G99 G83 Z-#26 R3 Q3 F#9 N17 #100=#100+1 X[[#100*#21]-#21] Y[[#101*#22]-#22] IF [#100LT#11] GOTO 17

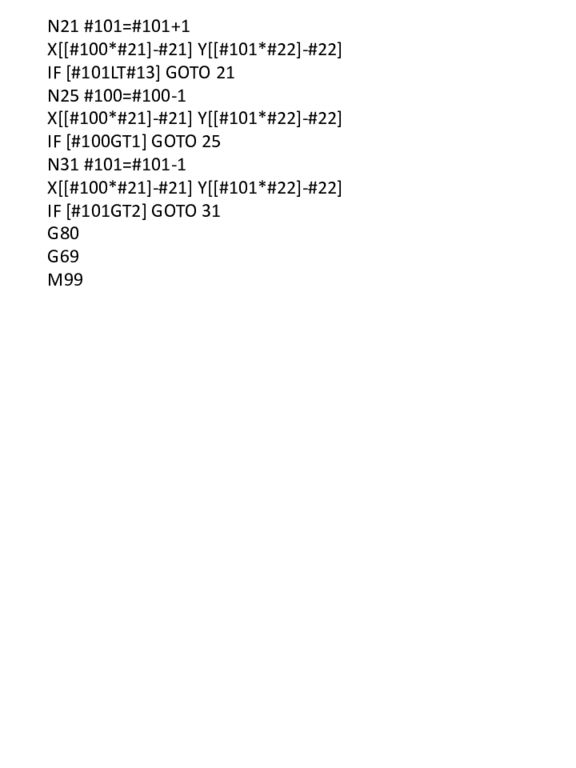

N21 #101=#101+1 X[[#100*#21]-#21] Y[[#101*#22]-#22] IF [#101LT#13] GOTO 21 N25 #100=#100-1 X[[#100*#21]-#21] Y[[#101*#22]-#22] IF [#100GT1] GOTO 25 N31 #101=#101-1 X[[#100*#21]-#21] Y[[#101*#22]-#22] IF [#101GT2] GOTO 31 G80 G69 M99

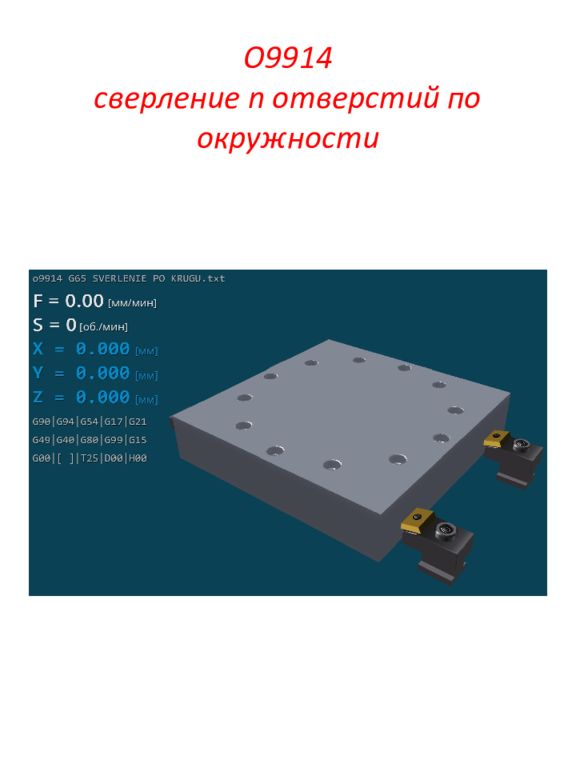

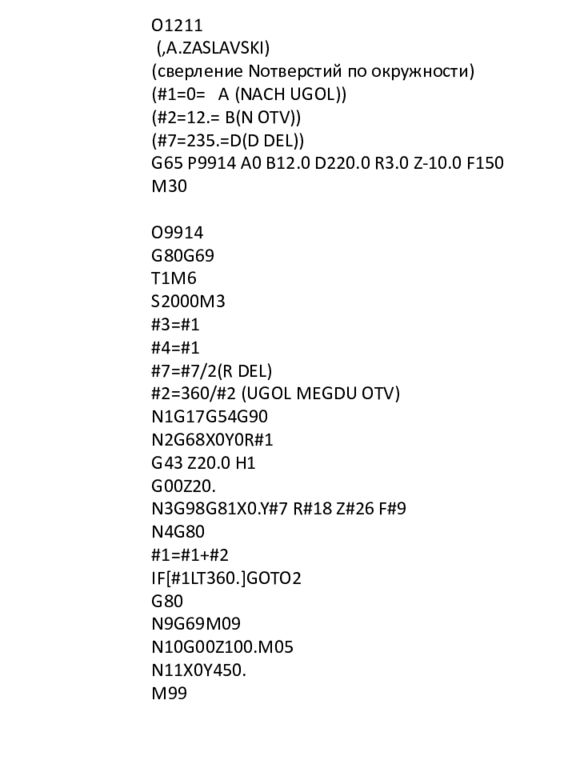

O1211 (,A.ZASLAVSKI) ( сверление N отверстий по окружности ) (#1=0= A (NACH UGOL)) (#2=12.= B(N OTV)) (#7=235.=D(D DEL)) G65 P9914 A0 B12.0 D220.0 R3.0 Z-10.0 F150 M30 O9914 G80G69 T1M6 S2000M3 #3=#1 #4=#1 #7=#7/2(R DEL) #2=360/#2 (UGOL MEGDU OTV) N1G17G54G90 N2G68X0Y0R#1 G43 Z20.0 H1 G00Z20. N3G98G81X0.Y#7 R#18 Z#26 F#9 N4G80 #1=#1+#2 IF[#1LT360.]GOTO2 G80 N9G69M09 N10G00Z100.M05 N11X0Y450. M99

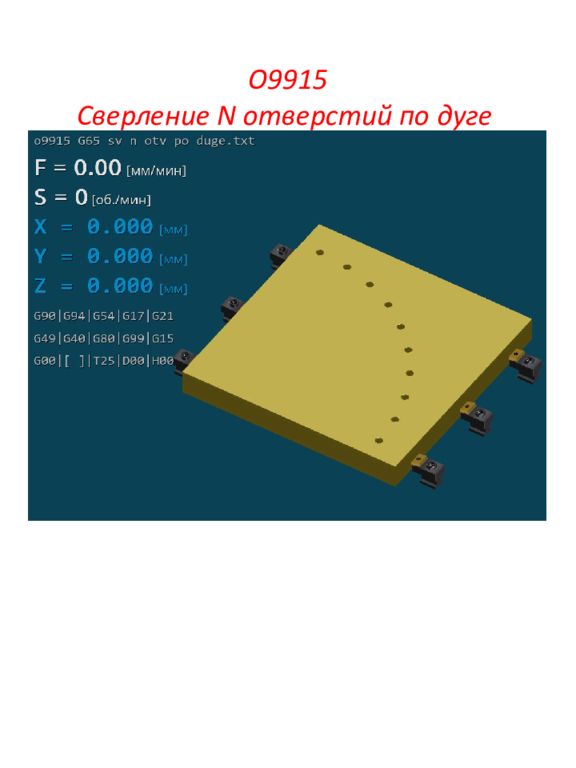

O1212 ; Сверление отверстий по дуге G17 G54 G40 G49 G80 G90 ;X#24 (KOORD 0 OKR PO X) ;Y#25 (KOORD 0 OKR PO Y) ;I#4 (RAD DEL OKR) ;A#1 (NACHALN UGOL OT OSY X) ;H#11 (KOL TOCHEK OKR) ;D#7 (UGOL M TOCHKAMI) ;F#9 (PODACHA) ;Z#26 (GL PO Z) G65 P9915X40Y40I350Z20 A0 H10 D10 T1 S4000F180 G80 G91 G28 Z0 G91 G28 Y0 G90 M5 M30 %

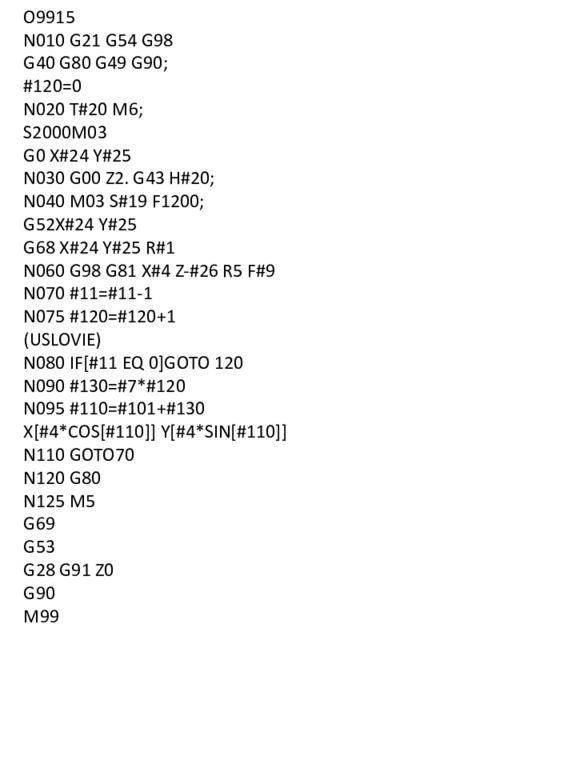

O9915 N010 G21 G54 G98 G40 G80 G49 G90; #120=0 N020 T#20 M6; S2000M03 G0 X#24 Y#25 N030 G00 Z2. G43 H#20; N040 M03 S#19 F1200; G52X#24 Y#25 G68 X#24 Y#25 R#1 N060 G98 G81 X#4 Z-#26 R5 F#9 N070 #11=#11-1 N075 #120=#120+1 (USLOVIE) N080 IF[#11 EQ 0]GOTO 120 N090 #130=#7*#120 N095 #110=#101+#130 X[#4*COS[#110]] Y[#4*SIN[#110]] N110 GOTO70 N120 G80 N125 M5 G69 G53 G28 G91 Z0 G90 M99

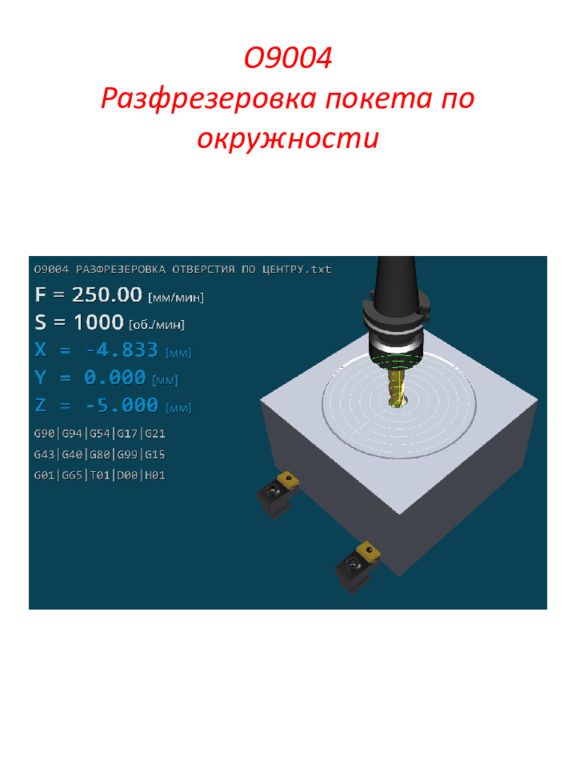

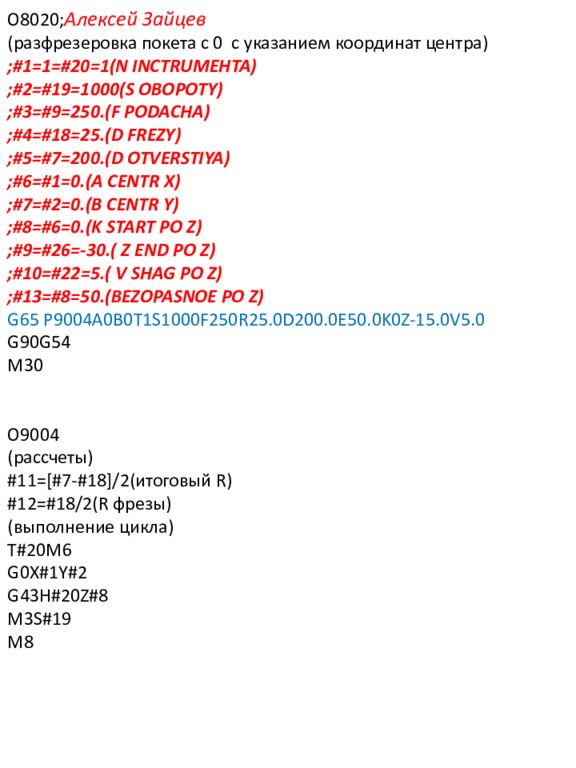

O8020; Алексей Зайцев ( разфрезеровка покета с 0 с указанием координат центра ) ;#1=1=#20=1(N INCTRUMEHTA) ;#2=#19=1000(S OBOPOTY) ;#3=#9=250.(F PODACHA) ;#4=#18=25.(D FREZY) ;#5=#7=200.(D OTVERSTIYA) ;#6=#1=0.(A CENTR X) ;#7=#2=0.(B CENTR Y) ;#8=#6=0.(K START PO Z) ;#9=#26=-30.( Z END PO Z) ;#10=#22=5.( V SHAG PO Z) ;#13=#8=50.(BEZOPASNOE PO Z) G65 P9004A0B0T1S1000F250R25.0D200.0E50.0K0Z-15.0V5.0 G90G54 M30 O9004 ( рассчеты ) #11=[#7-#18]/2( итоговый R) #12=#18/2(R фрезы ) ( выполнение цикла ) T#20M6 G0X#1Y#2 G43H#20Z#8 M3S#19 M8

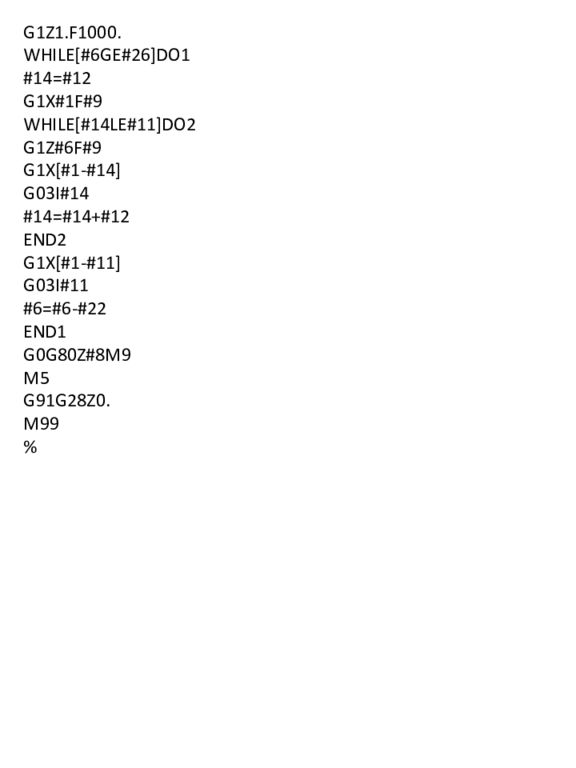

G1Z1.F1000. WHILE[#6GE#26]DO1 #14=#12 G1X#1F#9 WHILE[#14LE#11]DO2 G1Z#6F#9 G1X[#1-#14] G03I#14 #14=#14+#12 END2 G1X[#1-#11] G03I#11 #6=#6-#22 END1 G0G80Z#8M9 M5 G91G28Z0. M99 %

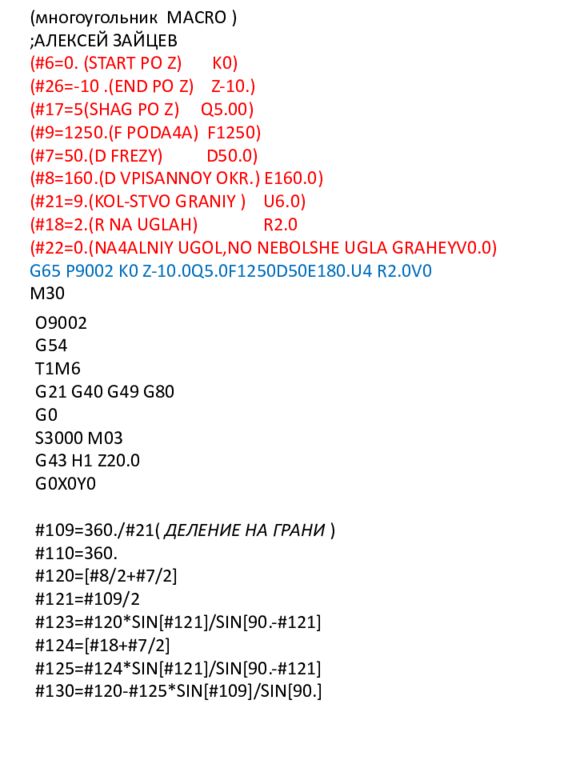

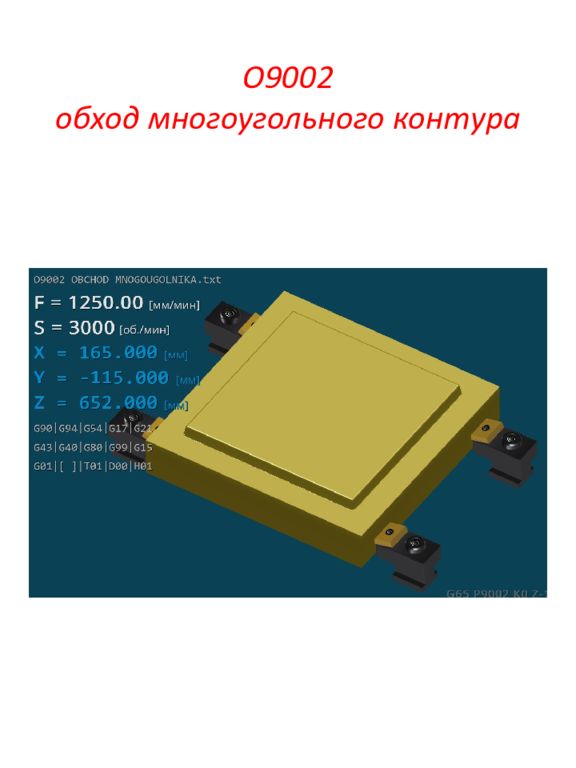

( многоугольник MACRO ) ; АЛЕКСЕЙ ЗАЙЦЕВ (#6=0. (START PO Z) K0) (#26=-10.(END PO Z) Z-10.) (#17=5 ( SHAG PO Z) Q5.00) (#9=1250.(F PODA4A) F1250) (#7=50.(D FREZY) D50.0) (#8=160.(D VPISANNOY OKR.) E160.0) (#21=9.(KOL-STVO GRANIY ) U6.0) (#18=2.(R NA UGLAH) R2.0 (#22=0.(NA4ALNIY UGOL,NO NEBOLSHE UGLA GRAHEYV0.0) G65 P9002 K0 Z-10.0Q5.0F1250D50E180.U4 R2.0V0 M30 O9002 G54 T1M6 G21 G40 G49 G80 G0 S3000 M03 G43 H1 Z20.0 G0X0Y0 #109=360./# 21( ДЕЛЕНИЕ НА ГРАНИ ) #110=360. #120=[#8/2+#7/2] #121=#109/2 #123=#120*SIN[#121]/SIN[90.-#121] #124=[#18+#7/2] #125=#124*SIN[#121]/SIN[90.-#121] #130=#120-#125*SIN[#109]/SIN[90.]

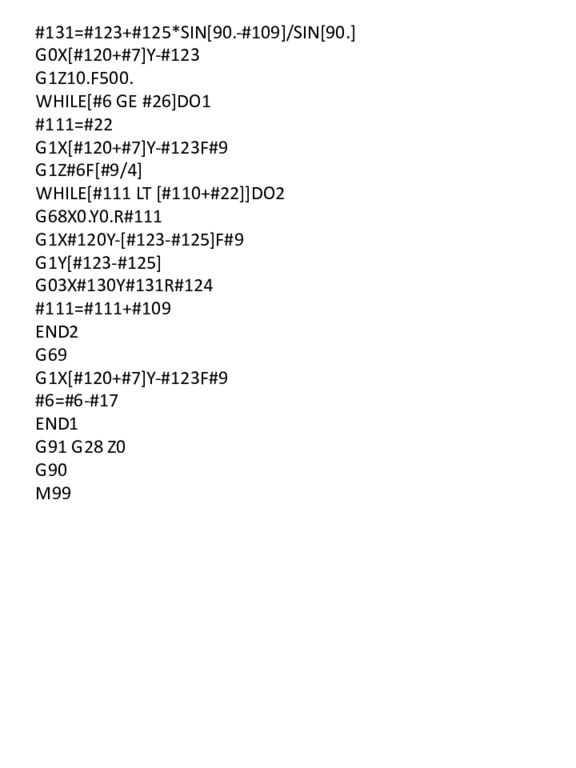

#131=#123+#125*SIN[90.-#109]/SIN[90.] G0X[#120+#7]Y-#123 G1Z10.F500. WHILE[#6 GE #26]DO1 #111=#22 G1X[#120+#7]Y-#123F#9 G1Z#6F[#9/4] WHILE[#111 LT [#110+#22]]DO2 G68X0.Y0.R#111 G1X#120Y-[#123-#125]F#9 G1Y[#123-#125] G03X#130Y#131R#124 #111=#111+#109 END2 G69 G1X[#120+#7]Y-#123F#9 #6=#6-#17 END1 G91 G28 Z0 G90 M99

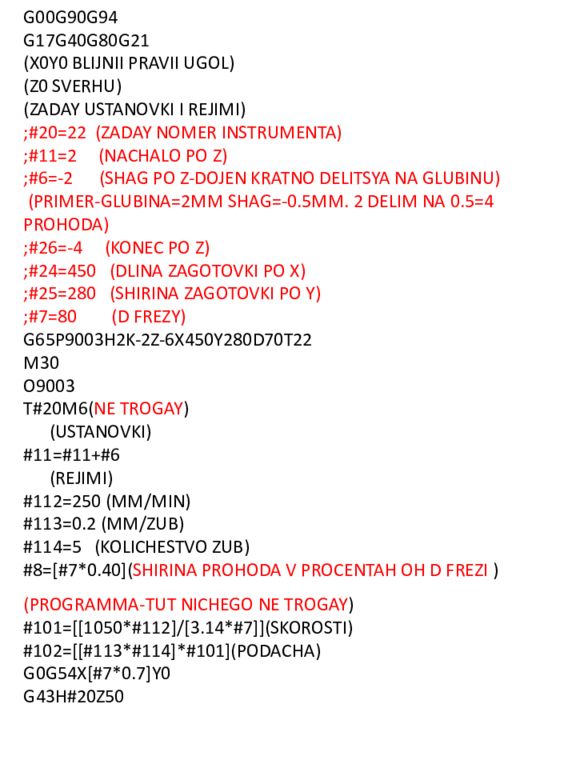

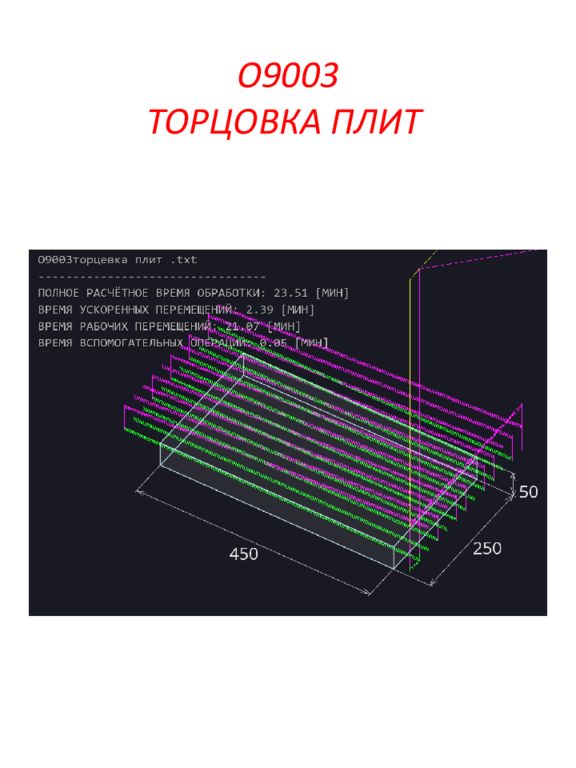

G00G90G94 G17G40G80G21 (X0Y0 BLIJNII PRAVII UGOL) (Z0 SVERHU) (ZADAY USTANOVKI I REJIMI) ;#20=22 (ZADAY NOMER INSTRUMENTA) ;#11=2 (NACHALO PO Z) ;#6=-2 (SHAG PO Z-DOJEN KRATNO DELITSYA NA GLUBINU) (PRIMER-GLUBINA=2MM SHAG=-0.5MM. 2 DELIM NA 0.5=4 PROHODA) ;#26=-4 (KONEC PO Z) ;#24=450 (DLINA ZAGOTOVKI PO X) ;#25=280 (SHIRINA ZAGOTOVKI PO Y) ;#7=80 (D FREZY) G65P9003H2K-2Z-6X450Y280D70T22 M30 O9003 T#20M6( NE TROGAY ) (USTANOVKI) #11=#11+#6 (REJIMI) #112=250 (MM/MIN) #113=0.2 (MM/ZUB) #114=5 (KOLICHESTVO ZUB) #8=[#7*0.40]( SHIRINA PROHODA V PROCENTAH OH D FREZI ) (PROGRAMMA-TUT NICHEGO NE TROGAY ) #101=[[1050*#112]/[3.14*#7]](SKOROSTI) #102=[[#113*#114]*#101](PODACHA) G0G54X[#7*0.7]Y0 G43H#20Z50

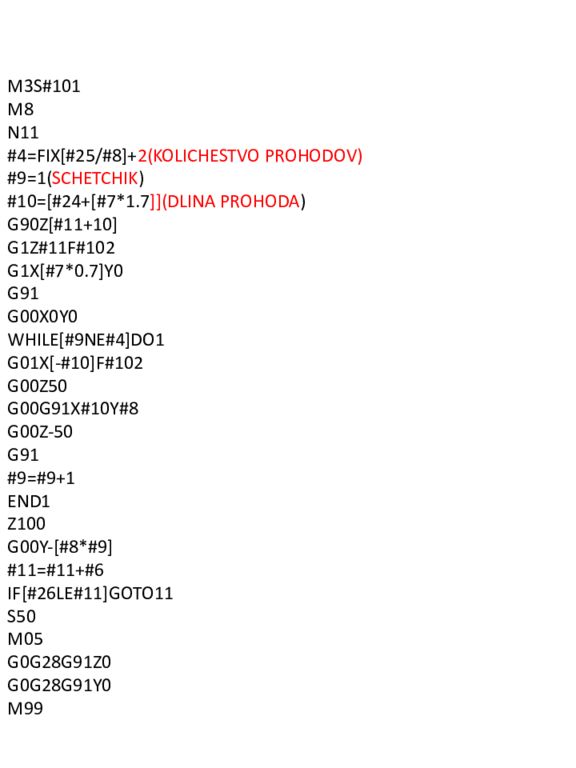

M3S#101 M8 N11 #4=FIX[#25/#8]+ 2(KOLICHESTVO PROHODOV) #9=1( SCHETCHIK ) #10=[#24+[#7*1.7 ]](DLINA PROHODA ) G90Z[#11+10] G1Z#11F#102 G1X[#7*0.7]Y0 G91 G00X0Y0 WHILE[#9NE#4]DO1 G01X[-#10]F#102 G00Z50 G00G91X#10Y#8 G00Z-50 G91 #9=#9+1 END1 Z100 G00Y-[#8*#9] #11=#11+#6 IF[#26LE#11]GOTO11 S50 M05 G0G28G91Z0 G0G28G91Y0 M99

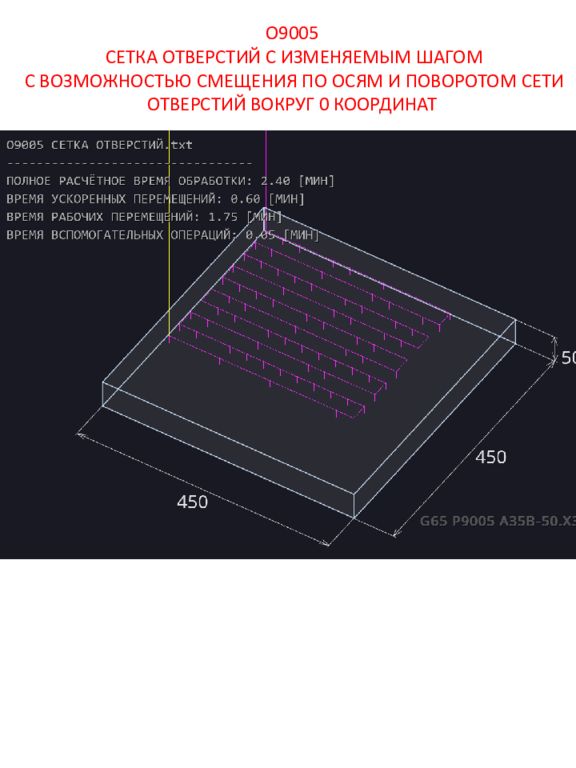

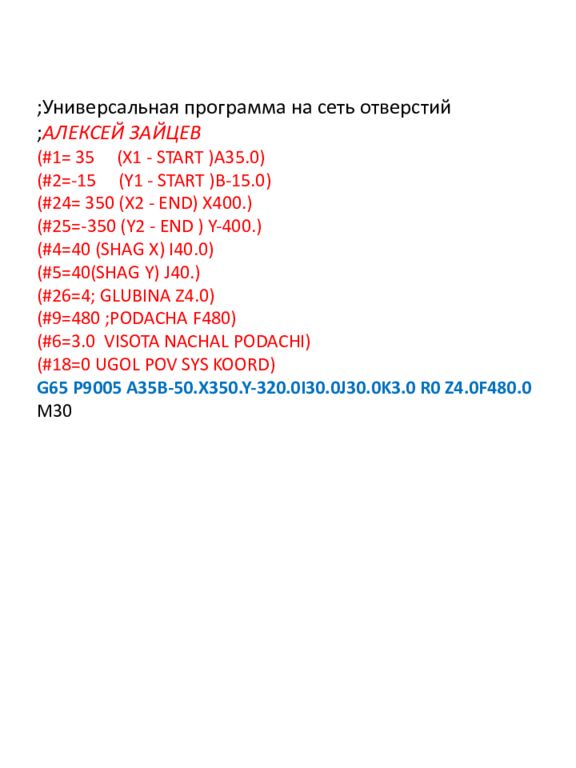

O9005 ; Универсальная программа на сеть отверстий ; АЛЕКСЕЙ ЗАЙЦЕВ (########################) G21 G0 G17 G40 G49 G80 G90 T1 M06 G90 G00 G54 X#1 Y#2 S4000 M03 G43 Z10. H01 M08 G68 X#1 Y#2 R#18 G98 G81 R#6 Z-#26 F#9 N1 #50=#1 WHILE [ #50 LT #24 ] DO1 #50= #50+#4 X#50 END1 #2= #2 -#5 IF [ #2 LT #25 ] GOTO2 Y#2 WHILE [ #50 GT #1 ] DO1 #50= #50 - #4 X#50 END1 #2= #2 - #5 IF [ #2 LT #25 ] GOTO2 Y#2 GOTO1 N2 G90 G80 Z10. M09 G69 G28 G91 Z0 G28 Y0. M99

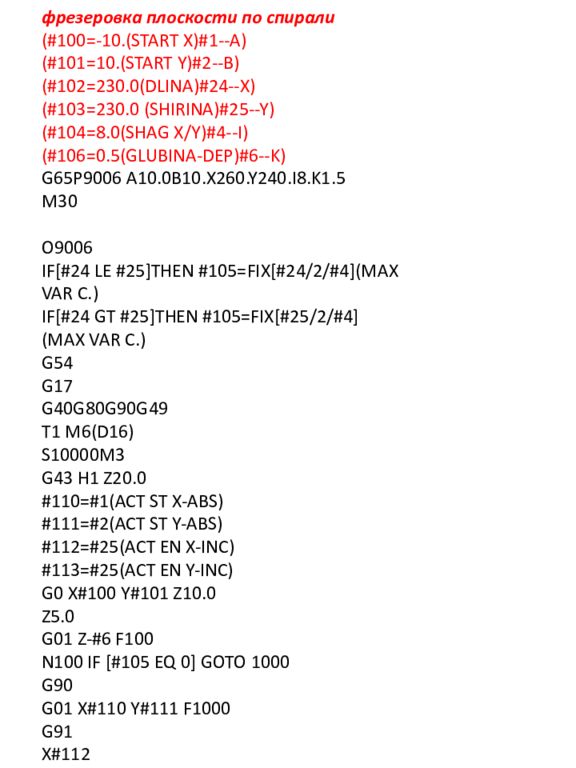

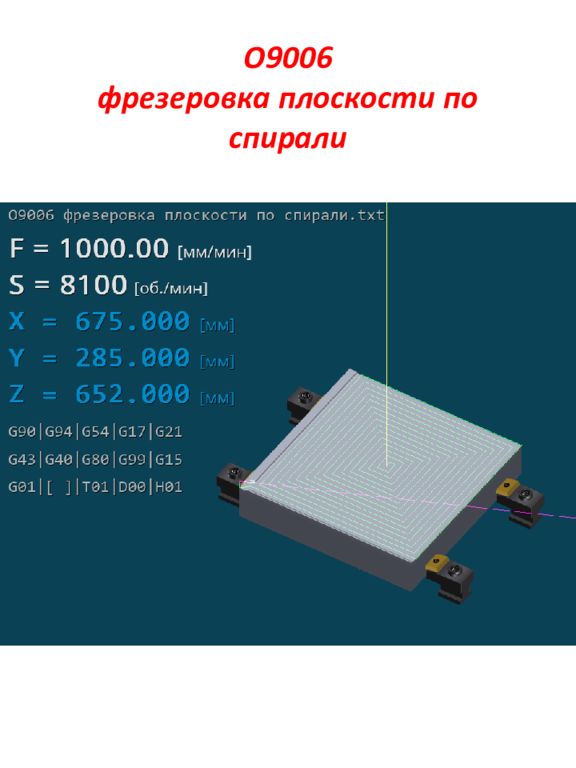

фрезеровка плоскости по спирали (#100=-10.(START X)#1--A) (#101=10.(START Y)#2--B) (#102=230.0(DLINA)#24--X) (#103=230.0 (SHIRINA)#25--Y) (#104=8.0(SHAG X/Y)#4--I) (#106=0.5(GLUBINA-DEP)#6--K) G65P9006 A10.0B10.X260.Y240.I8.K1.5 M30 O9006 IF[#24 LE #25]THEN #105=FIX[#24/2/#4](MAX VAR C.) IF[#24 GT #25]THEN #105=FIX[#25/2/#4](MAX VAR C.) G54 G17 G40G80G90G49 T1 M6(D16) S10000M3 G43 H1 Z20.0 #110=#1(ACT ST X-ABS) #111=#2(ACT ST Y-ABS) #112=#25(ACT EN X-INC) #113=#25(ACT EN Y-INC) G0 X#100 Y#101 Z10.0 Z5.0 G01 Z-#6 F100 N100 IF [#105 EQ 0] GOTO 1000 G90 G01 X#110 Y#111 F1000 G91 X#112

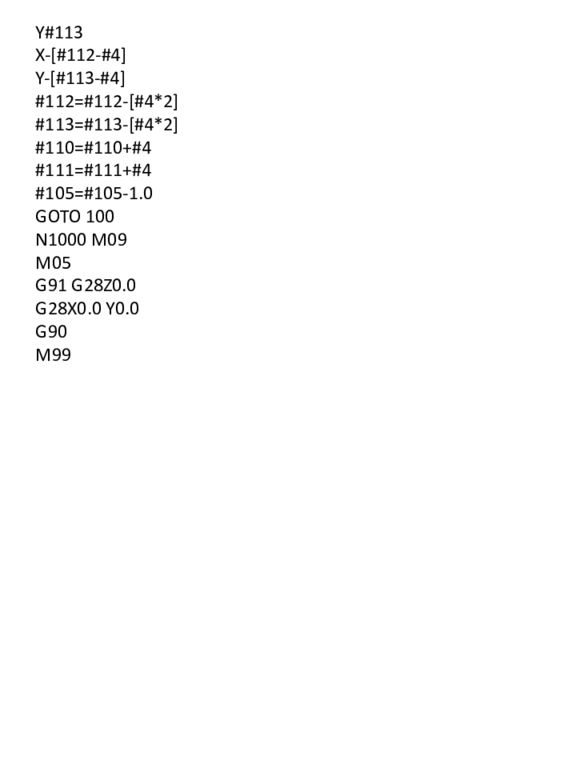

Y#113 X-[#112-#4] Y-[#113-#4] #112=#112-[#4*2] #113=#113-[#4*2] #110=#110+#4 #111=#111+#4 #105=#105-1.0 GOTO 100 N1000 M09 M05 G91 G28Z0.0 G28X0.0 Y0.0 G90 M99

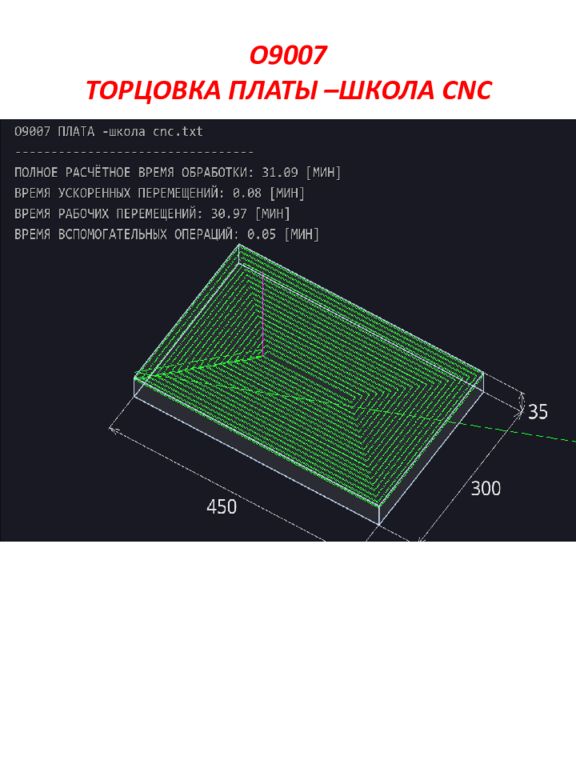

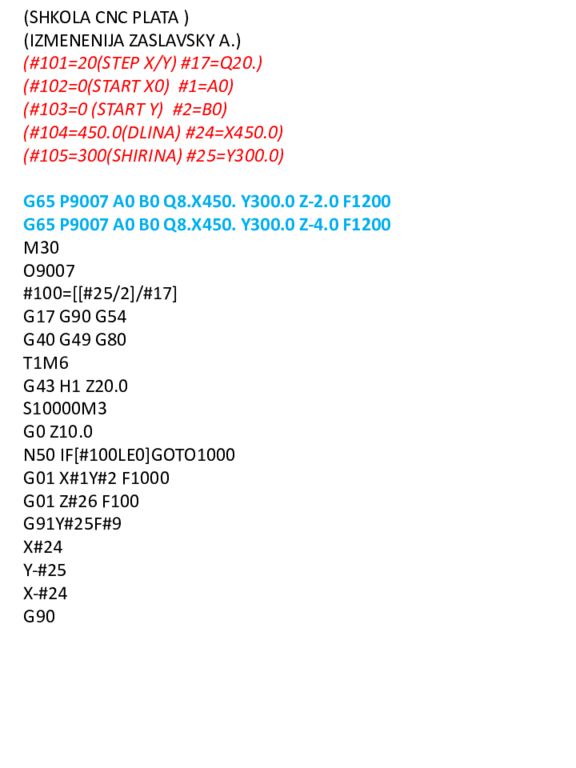

(SHKOLA CNC PLATA ) (IZMENENIJA ZASLAVSKY A.) (#101=20(STEP X/Y) #17=Q20.) (#102=0(START X0) #1=A0) (#103=0 (START Y) #2=B0) (#104=450.0(DLINA) #24=X450.0) (#105=300(SHIRINA) #25=Y300.0) G65 P9007 A0 B0 Q8.X450. Y300.0 Z-2.0 F1200 G65 P9007 A0 B0 Q8.X450. Y300.0 Z-4.0 F1200 M30 O9007 #100=[[#25/2]/#17] G17 G90 G54 G40 G49 G80 T1M6 G43 H1 Z20.0 S10000M3 G0 Z10.0 N50 IF[#100LE0]GOTO1000 G01 X#1Y#2 F1000 G01 Z#26 F100 G91Y#25F#9 X#24 Y-#25 X-#24 G90

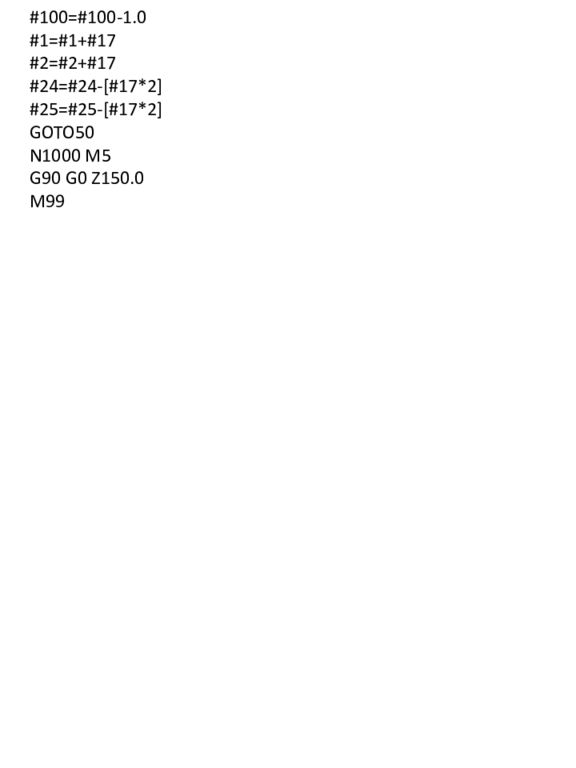

#100=#100-1.0 #1=#1+#17 #2=#2+#17 #24=#24-[#17*2] #25=#25-[#17*2] GOTO50 N1000 M5 G90 G0 Z150.0 M99

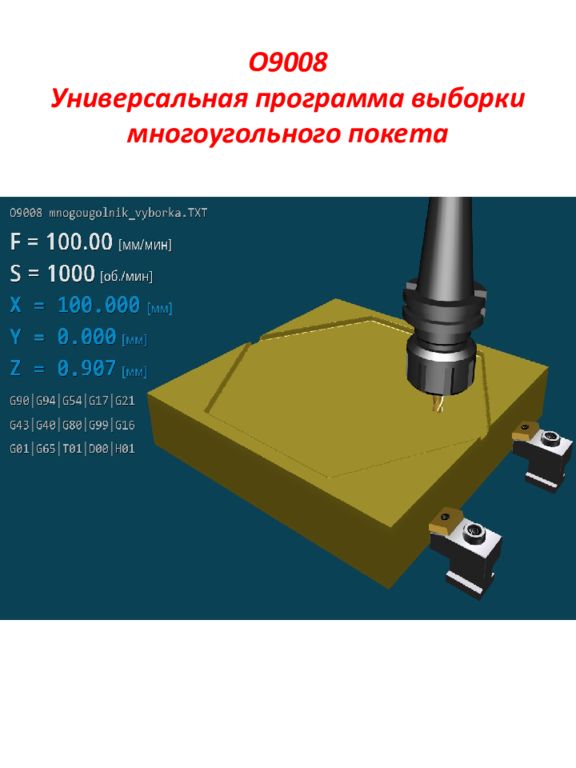

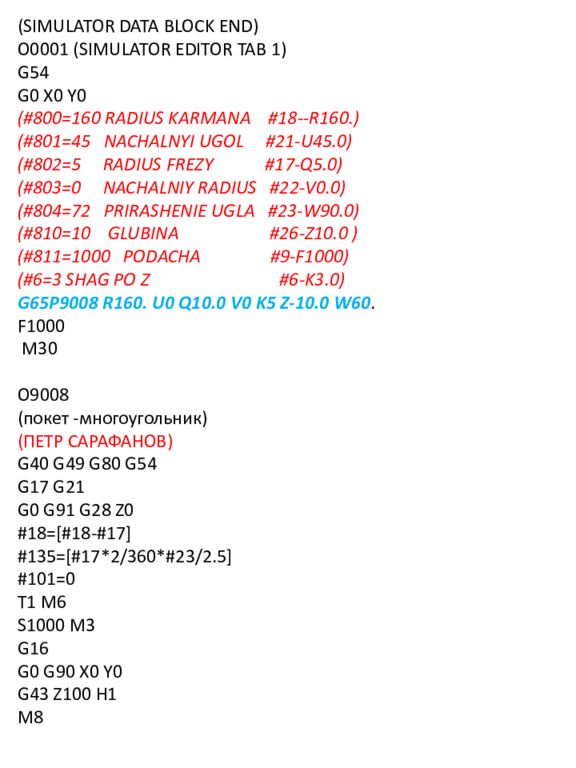

(SIMULATOR DATA BLOCK END) O0001 (SIMULATOR EDITOR TAB 1) G54 G0 X0 Y0 (#800=160 RADIUS KARMANA #18--R160.) (#801=45 NACHALNYI UGOL #21-U45.0) (#802=5 RADIUS FREZY #17-Q5.0) (#803=0 NACHALNIY RADIUS #22-V0.0) (#804=72 PRIRASHENIE UGLA #23-W90.0) (#810=10 GLUBINA #26-Z10.0 ) (#811=1000 PODACHA #9-F1000) (#6=3 SHAG PO Z #6-K3.0) G65P 9 008 R160. U0 Q10.0 V0 K5 Z-10.0 W60. F1000 M30 O 9 008 ( покет -многоугольник ) ( ПЕТР САРАФАНОВ ) G40 G49 G80 G54 G17 G21 G0 G91 G28 Z0 #18=[#18-#17] #135=[#17*2/360*#23/2.5] #101=0 T1 M6 S1000 M3 G16 G0 G90 X0 Y0 G43 Z100 H1 M8

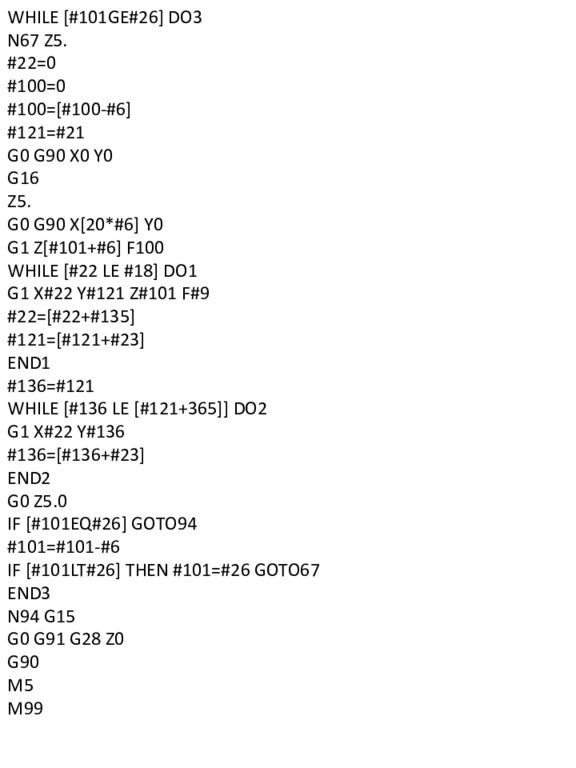

WHILE [#101GE#26] DO3 N67 Z5. #22=0 #100=0 #100=[#100-#6] #121=#21 G0 G90 X0 Y0 G16 Z5. G0 G90 X[20*#6] Y0 G1 Z[#101+#6] F100 WHILE [#22 LE #18] DO1 G1 X#22 Y#121 Z#101 F#9 #22=[#22+#135] #121=[#121+#23] END1 #136=#121 WHILE [#136 LE [#121+365]] DO2 G1 X#22 Y#136 #136=[#136+#23] END2 G0 Z5.0 IF [#101EQ#26] GOTO94 #101=#101-#6 IF [#101LT#26] THEN #101=#26 GOTO67 END3 N94 G15 G0 G91 G28 Z0 G90 M5 M99

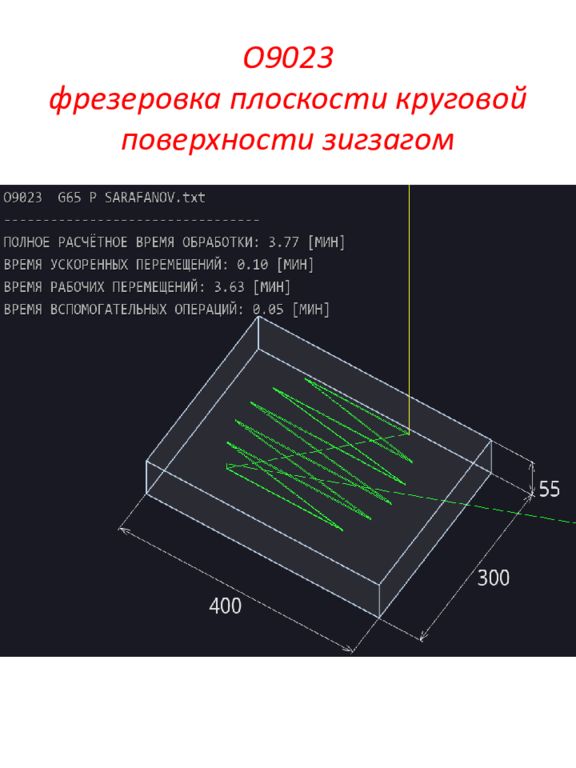

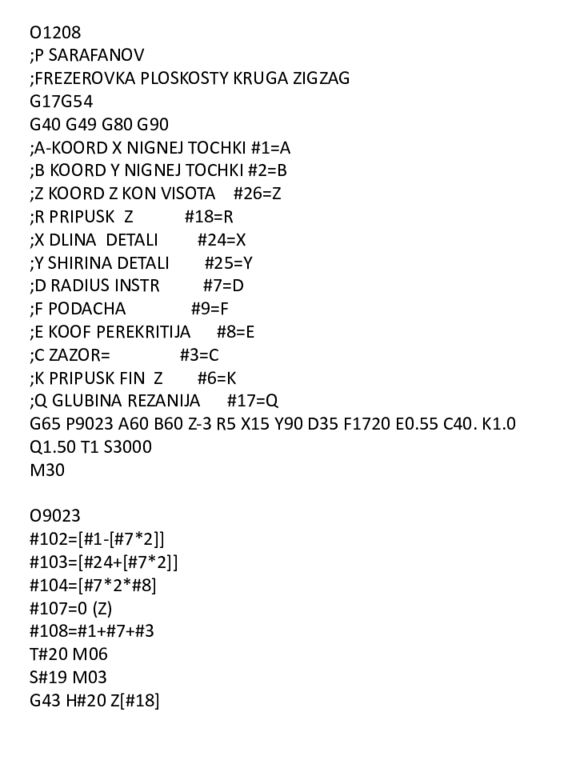

O1208 ;P SARAFANOV ;FREZEROVKA PLOSKOSTY KRUGA ZIGZAG G17G54 G40 G49 G80 G90 ;A-KOORD X NIGNEJ TOCHKI #1=A ;B KOORD Y NIGNEJ TOCHKI #2=B ;Z KOORD Z KON VISOTA #26=Z ;R PRIPUSK Z #18=R ;X DLINA DETALI #24=X ;Y SHIRINA DETALI #25=Y ;D RADIUS INSTR #7=D ;F PODACHA #9=F ;E KOOF PEREKRITIJA #8=E ;C ZAZOR= #3=C ;K PRIPUSK FIN Z #6=K ;Q GLUBINA REZANIJA #17=Q G65 P9023 A60 B60 Z-3 R5 X15 Y90 D35 F1720 E0.55 C40. K1.0 Q1.50 T1 S3000 M30 O9023 #102=[#1-[#7*2]] #103=[#24+[#7*2]] #104=[#7*2*#8] #107=0 (Z) #108=#1+#7+#3 T#20 M06 S#19 M03 G43 H#20 Z[#18]

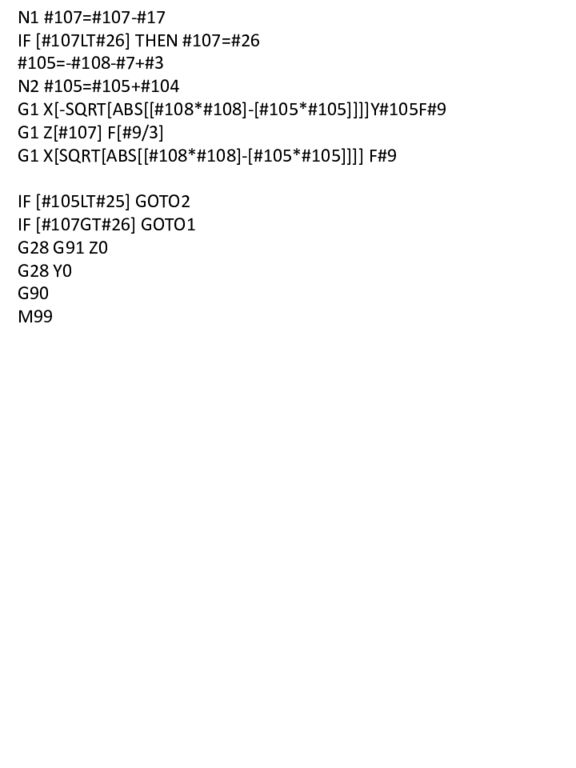

N1 #107=#107-#17 IF [#107LT#26] THEN #107=#26 #105=-#108-#7+#3 N2 #105=#105+#104 G1 X[-SQRT[ABS[[#108*#108]-[#105*#105]]]]Y#105F#9 G1 Z[#107] F[#9/3] G1 X[SQRT[ABS[[#108*#108]-[#105*#105]]]] F#9 IF [#105LT#25] GOTO2 IF [#107GT#26] GOTO1 G28 G91 Z0 G28 Y0 G90 M99

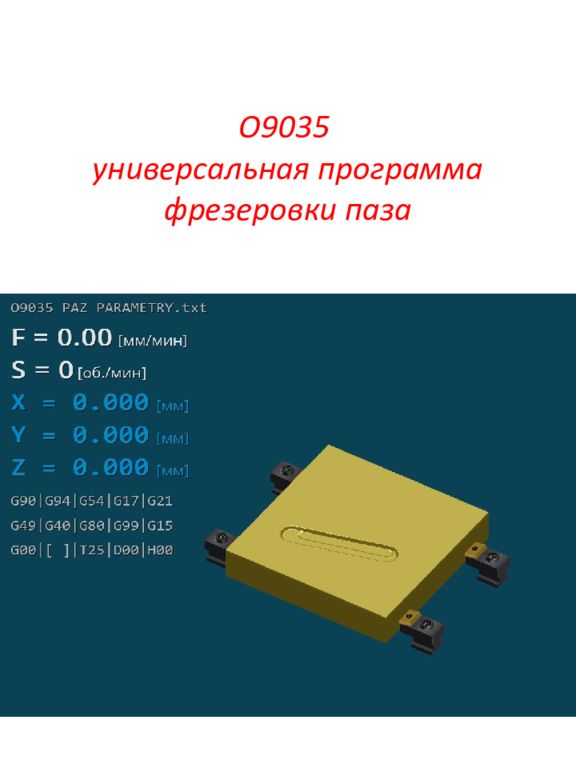

G17 G54 (#1=1(N INSTR ) #20=1 T) (#2=1000(OBOROTI) #19=2000 S) (#3=600(PODACHA) #9=F=600) (#4=8 ( D INSTR) #4=#7=8) (#5=30 (L PAZA) #5=#24=X) (#6=10 (H PAZA) #6=#25=Y) (#7=0 (Z0) #7=#6=K) (#8=6 ( Z FIN) #8=#26=Z) (#9=0.5 (SHAG Z) #9=#23=W) (#10=0 (UGOL POVOROTA) #10=#21=U) (#11=100 ( K 0 X) #11=#1=A) (#12=100 (K 0 Y) #12=#2=B) G65P9035T1S2000F600D16X160.Y30K0Z6W0.5A100B100R15 M09 G91 G28 Z0 M05 G91 G28 Y0 M30 O9035 T#20 M06 G90 G0 X#1 Y#2 G43 H#20 Z[#6+1]M08 S#19 M03 G68 X#1 Y#2 R#18 G1 G91 X[[#7+#24]/2] Z-#23 F#9 G3 X-[[#25-#7]/2] Y-[[#25-#7]/2] R[[#25-#7]/2] #13-#23

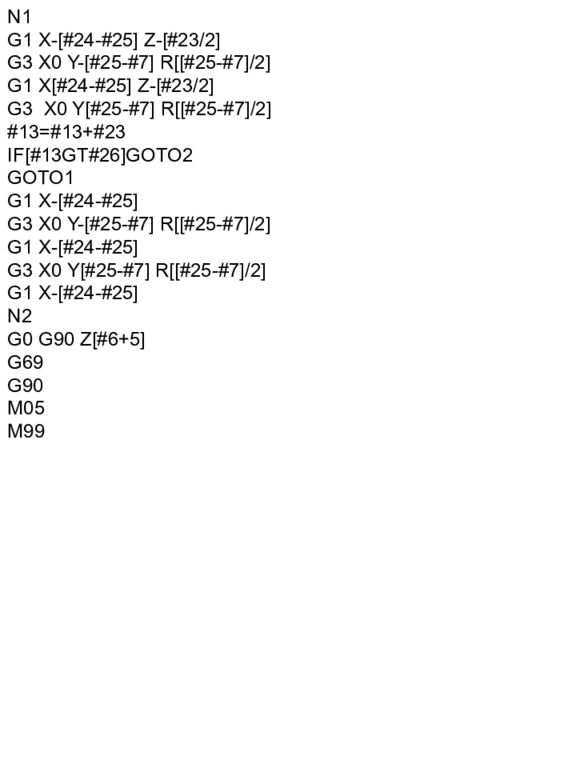

N1 G1 X-[#24-#25] Z-[#23/2] G3 X0 Y-[#25-#7] R[[#25-#7]/2] G1 X[#24-#25] Z-[#23/2] G3 X0 Y[#25-#7] R[[#25-#7]/2] #13=#13+#23 IF[#13GT#26]GOTO2 GOTO1 G1 X-[#24-#25] G3 X0 Y-[#25-#7] R[[#25-#7]/2] G1 X-[#24-#25] G3 X0 Y[#25-#7] R[[#25-#7]/2] G1 X-[#24-#25] N2 G0 G90 Z[#6+5] G69 G90 M05 M99

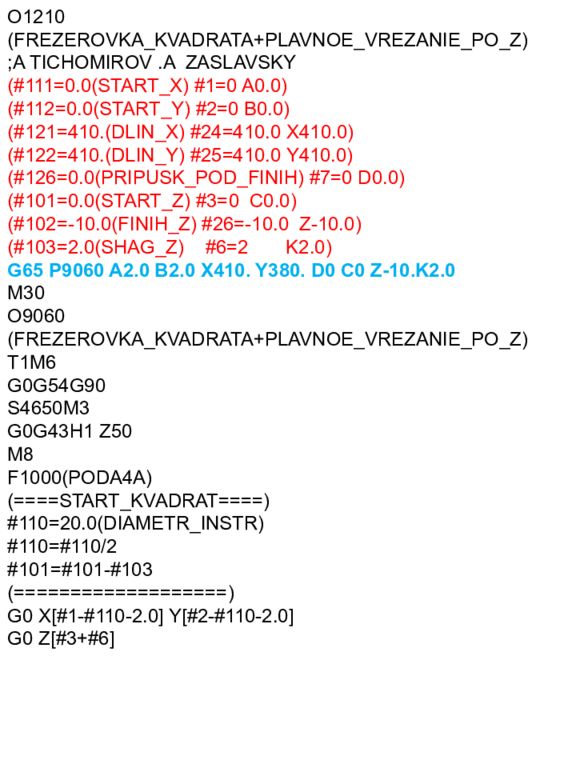

O1210 (FREZEROVKA_KVADRATA+PLAVNOE_VREZANIE_PO_Z) ;A TICHOMIROV.A ZASLAVSKY (#111=0.0(START_X) #1=0 A0.0) (#112=0.0(START_Y) #2=0 B0.0) (#121=410.(DLIN_X) #24=410.0 X410.0) (#122=410.(DLIN_Y) #25=410.0 Y410.0) (#126=0.0(PRIPUSK_POD_FINIH) #7=0 D0.0) (#101=0.0(START_Z) #3=0 C0.0) (#102=-10.0(FINIH_Z) #26=-10.0 Z-10.0) (#103=2.0(SHAG_Z) #6=2 K2.0) G65 P9060 A2.0 B2.0 X410. Y380. D0 C0 Z-10.K2.0 M30 O9060 (FREZEROVKA_KVADRATA+PLAVNOE_VREZANIE_PO_Z) T1M6 G0G54G90 S4650M3 G0G43H1 Z50 M8 F1000(PODA4A) (====START_KVADRAT====) #110=20.0(DIAMETR_INSTR) #110=#110/2 #101=#101-#103 (===================) G0 X[#1-#110-2.0] Y[#2-#110-2.0] G0 Z[#3+#6]

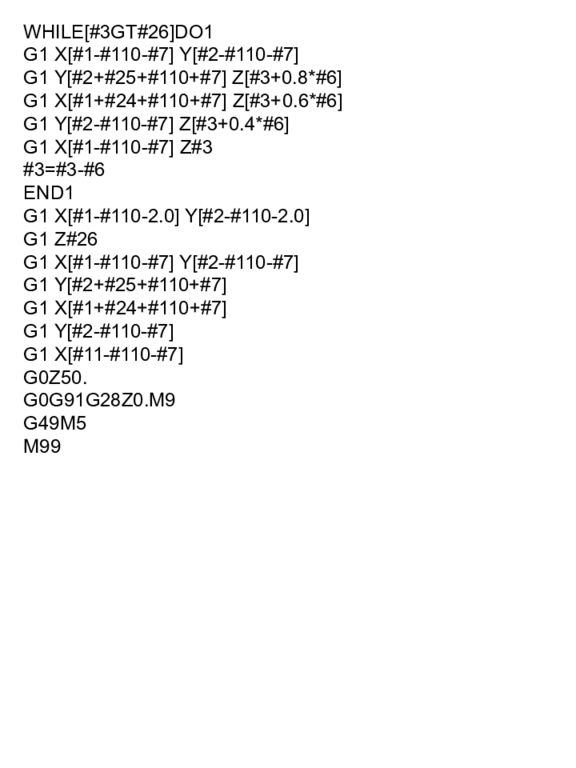

WHILE[#3GT#26]DO1 G1 X[#1-#110-#7] Y[#2-#110-#7] G1 Y[#2+#25+#110+#7] Z[#3+0.8*#6] G1 X[#1+#24+#110+#7] Z[#3+0.6*#6] G1 Y[#2-#110-#7] Z[#3+0.4*#6] G1 X[#1-#110-#7] Z#3 #3=#3-#6 END1 G1 X[#1-#110-2.0] Y[#2-#110-2.0] G1 Z#26 G1 X[#1-#110-#7] Y[#2-#110-#7] G1 Y[#2+#25+#110+#7] G1 X[#1+#24+#110+#7] G1 Y[#2-#110-#7] G1 X[#11-#110-#7] G0Z50. G0G91G28Z0.M9 G49M5 M 99

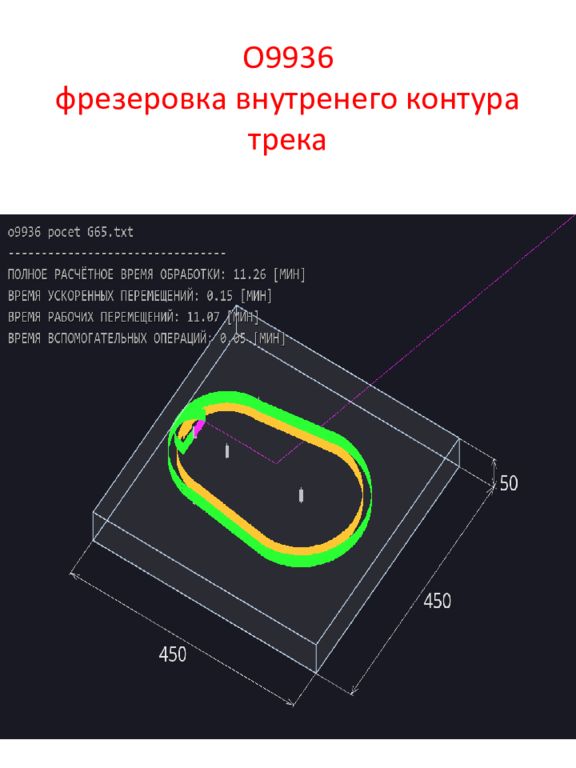

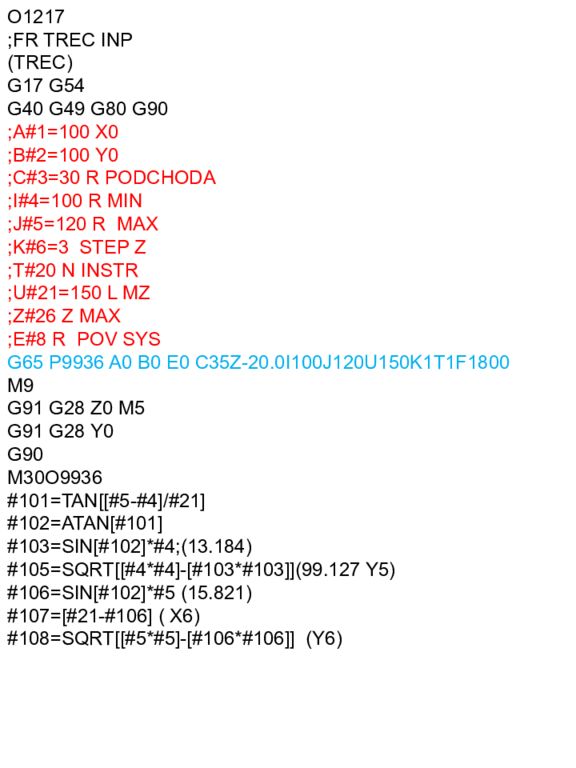

O1217 ;FR TREC INP (TREC) G17 G54 G40 G49 G80 G90 ;A#1=100 X0 ;B#2=100 Y0 ;C#3=30 R PODCHODA ;I#4=100 R MIN ;J#5=120 R MAX ;K#6=3 STEP Z ;T#20 N INSTR ;U#21=150 L MZ ;Z#26 Z MAX ;E#8 R POV SYS G65 P9936 A0 B0 E0 C35Z-20.0I100J120U150K1T1F1800 M9 G91 G28 Z0 M5 G91 G28 Y0 G90 M30O9936 #101=TAN[[#5-#4]/#21] #102=ATAN[#101] #103=SIN[#102]*#4;(13.184) #105=SQRT[[#4*#4]-[#103*#103]](99.127 Y5) #106=SIN[#102]*#5 (15.821) #107=[#21-#106] ( X6) #108=SQRT[[#5*#5]-[#106*#106]] (Y6)

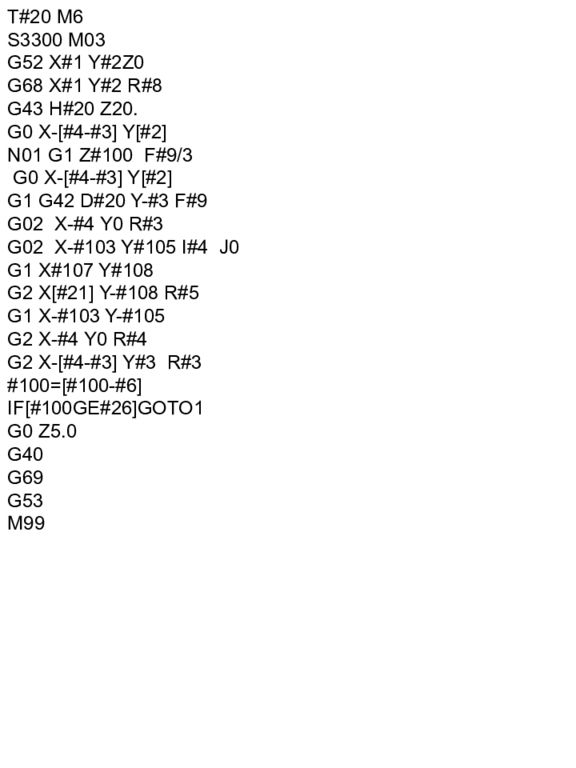

T#20 M6 S3300 M03 G52 X#1 Y#2Z0 G68 X#1 Y#2 R#8 G43 H#20 Z20. G0 X-[#4-#3] Y[#2] N01 G1 Z#100 F#9/3 G0 X-[#4-#3] Y[#2] G1 G42 D#20 Y-#3 F#9 G02 X-#4 Y0 R#3 G02 X-#103 Y#105 I#4 J0 G1 X#107 Y#108 G2 X[#21] Y-#108 R#5 G1 X-#103 Y-#105 G2 X-#4 Y0 R#4 G2 X-[#4-#3] Y#3 R#3 #100=[#100-#6] IF[#100GE#26]GOTO1 G0 Z5.0 G40 G69 G53 M99

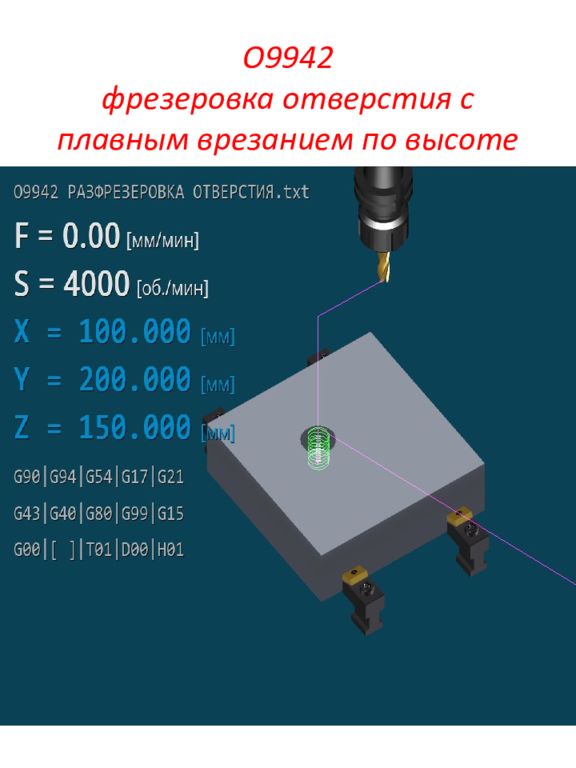

(UNIVERSALNO OBRABOTKA OTVERSTIE) ; V LUBOY TOCHKE NA PLOSKOSTI DETALI T1M6 S4000 M3 (**************************************) (#18=10.0 ( R#18 VERH. PLOSKOST' ) (#26 = -20.0 ( Z#26 RAB. PLOSKOST' ) (#19 = 4.0 ( S#19 SHAG ) (#24=50 ( X#24 KOORDINATA CENTRA ) (#25=50 ( Y#25 KOORDINATA CENTRA ) (#7 = 42.0 ( D#7 DIAMETR OTVERSTIE ) (#20 = 16.0 ( T#20 DIAMETR INSTRUMENTA ) (#11 = 20.0 (H#2 PLOSKOST' BEZOPASNOSTI) (#6 =1300 ( F#6 PODACHA OBRABOTKI ) (**************************************) G65P9942 X100Y100S4Z-20.0R10D42K1000H20T16 M30 O9942 #19 = #19/2 #20 = #20/2 #7 = #7/2-#20 G00 G40 G94 G80 G90 G43 H1 Z20.0 G54 G0Z#11 G0X#24Y#25 G1Z#18F#6 G1Y[#25-#7] G2Y[#25+#7]R#7 G2Y[#25-#7]R#7
WHILE [ #18 GT #26 ] DO1 #18 = #18 - #19 IF [#18 LT #26 ] THEN #18 = #26 G2Y[#25+#7]R#7Z#18 #18 = #18 - #19 IF [#18 LT #26 ] THEN #18 = #26 G2Y[#25-#7]R#7Z#18 END1 G2Y[#25+#7]R#7 G2Y[#25-#7]R#7 G0X#24Y#25 G1Z#18 G0Z#11 G0 Z150.0 G0 Y200.0 M99

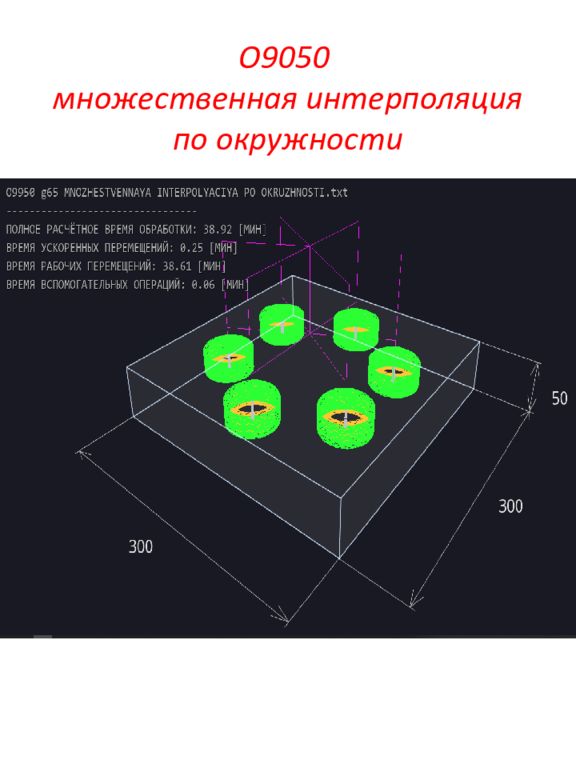

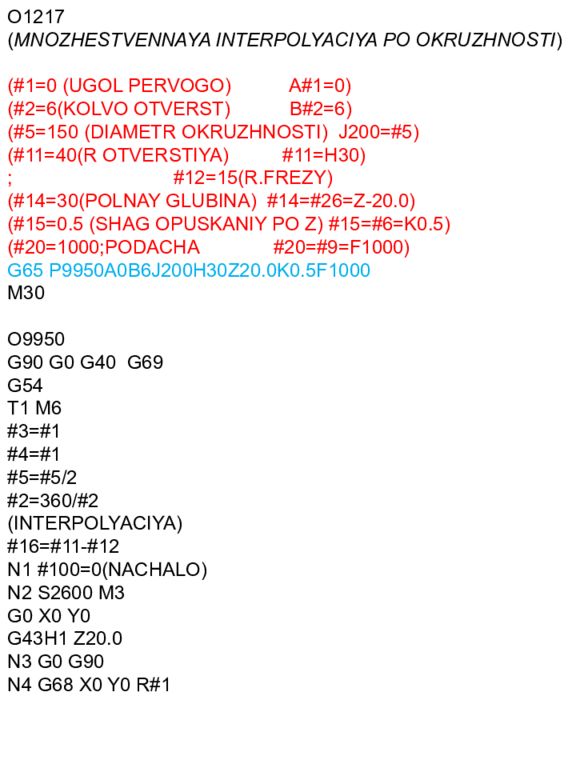

O1217 ( MNOZHESTVENNAYA INTERPOLYACIYA PO OKRUZHNOSTI ) (#1=0 (UGOL PERVOGO) A#1=0) (#2=6(KOLVO OTVERST) B#2=6) (#5=150 (DIAMETR OKRUZHNOSTI) J200=#5) (#11=40(R OTVERSTIYA) #11=H30) ; #12=15(R.FREZY) (#14=30(POLNAY GLUBINA) #14=#26=Z-20.0) (#15=0.5 (SHAG OPUSKANIY PO Z) #15=#6=K0.5) (#20=1000;PODACHA #20=#9=F1000) G65 P9950A0B6J200H30Z20.0K0.5F1000 M30 O9950 G90 G0 G40 G69 G54 T1 M6 #3=#1 #4=#1 #5=#5/2 #2=360/#2 (INTERPOLYACIYA) #16=#11-#12 N1 #100=0(NACHALO) N2 S2600 M3 G0 X0 Y0 G43H1 Z20.0 N3 G0 G90 N4 G68 X0 Y0 R#1

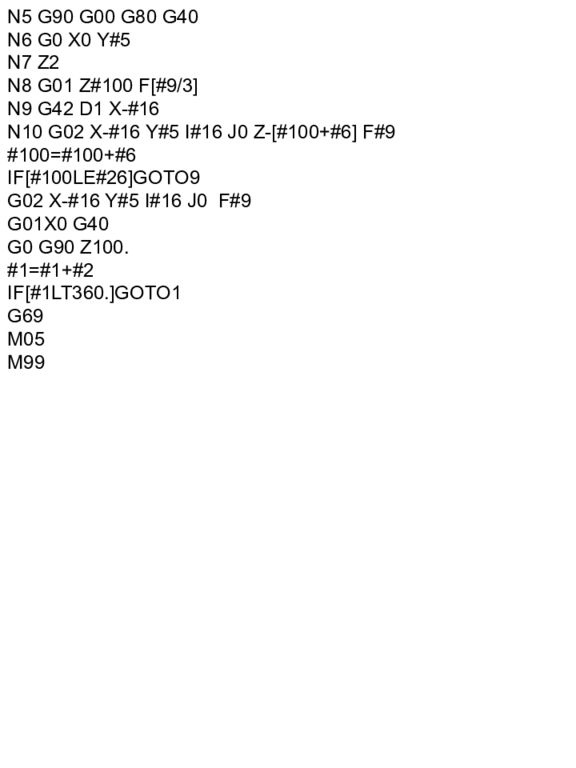

N5 G90 G00 G80 G40 N6 G0 X0 Y#5 N7 Z2 N8 G01 Z#100 F[#9/3] N9 G42 D1 X-#16 N10 G02 X-#16 Y#5 I#16 J0 Z-[#100+#6] F#9 #100=#100+#6 IF[#100LE#26]GOTO9 G02 X-#16 Y#5 I#16 J0 F#9 G01X0 G40 G0 G90 Z100. #1=#1+#2 IF[#1LT360.]GOTO1 G69 M05 M 99
